َAbout Product
Energy Saving: Our welding machine consumes only 1 kWh per hour.
Zero Consumables: The innovative pump-source optical design eliminates need for cavities, crystals, xenon lamps or reflector mirrors. This significantly reduces long-term maintenance costs and downtime.
Maintenance-Free Operation: The fully sealed laser module requires no optical realignment and maintains perfect calibration even during transport or vibration, ensuring consistent performance.
Intuitive Usability: Designed with familiar YAG welder operation principles, our machine features an ergonomic interface and large workbench for comfortable, efficient welding sessions.

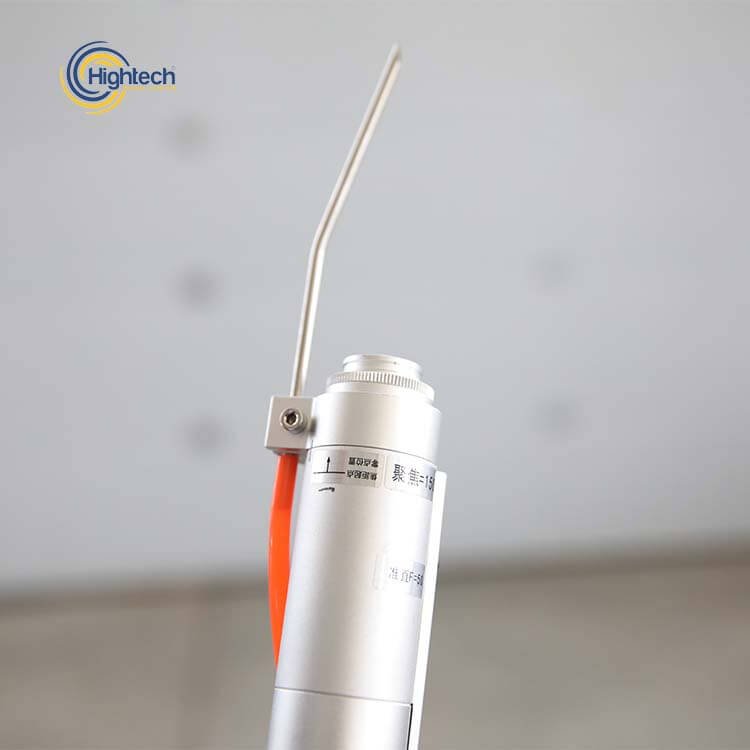

Versatile Dual-Mode Design: Switch effortlessly between stationary and handheld operation. The stationary platform includes a CCD screen, while the handheld unit offers exceptional mobility with its 8-meter cable.
Superior Welding Speed: With triple the pulse frequency of YAG welders, our machine dramatically increases production throughput without compromising quality.
Wide Material Compatibility: Expertly welds various metals including stainless steel, galvanized sheets, iron plates, and titanium with consistent, reliable results.
Technical Parameters
| Laser Power |
750W |
|---|---|
| Laser wave length |
1080nm |
| Maximum energy per pulse |
30J |
| Maximum penetration depth of welding |
0.1-3mm |
| Pulse width |
0.2-50ms |
| Laser welding frequency |
1-1000Hz |
| Power |
2KW ,AC220V±10% |
| Working table |
Wings folded: 0.96*1.6*1.19m ,Wings unfolded: 2.0*1.6*1.19m |
| Fiber length |
5-8m |
| Aiming and positioning |
CCD synchronous high-definition camera + red light |
| Up and down travel |
≈200mm |
Introducing the HT750W QCW Laser Welding Machine
The HT750W is designed for controlled QCW laser welding of metal components in different sizes and working positions. Its published welding capacity includes stainless steel from 0.2 to 3 mm and galvanized sheet from 0.2 to 2 mm.
Key Features
- CCD camera with 10× magnification
- Crosshair and red-light positioning
- Adjustable laser power, frequency, and pulse width
- Foldable dual-wing workbench
- Overall size with wings open: 200 × 160 × 119 cm
- Overall size with wings folded: 96 × 160 × 119 cm
Why Choose the HT750W?
The CCD positioning system assists with detailed workbench welding, while the adjustable parameters allow operators to select settings according to the material and welding requirements.
To check whether the HT750W matches your application, provide the material, thickness, workpiece dimensions, available voltage, and destination. Contact Hightech for the current HT750W QCW laser welding machine price and quotation.
Applications

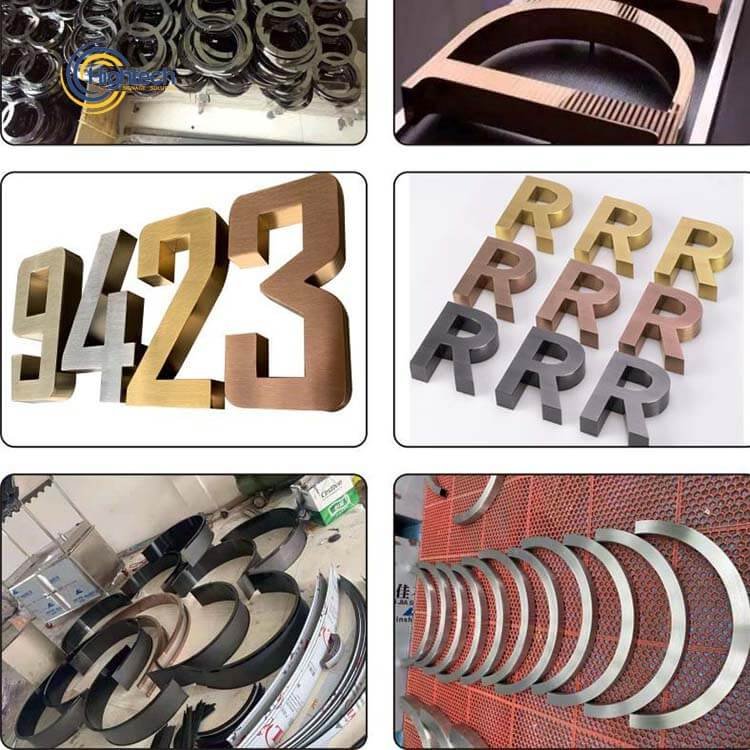

- Channel letters and metal lettering
- Small and detailed metal components
- Stainless steel components
- Galvanized sheet components
- Large or irregular workpieces
Actual welding results depend on the material, joint conditions, workpiece positioning, and selected parameters.
