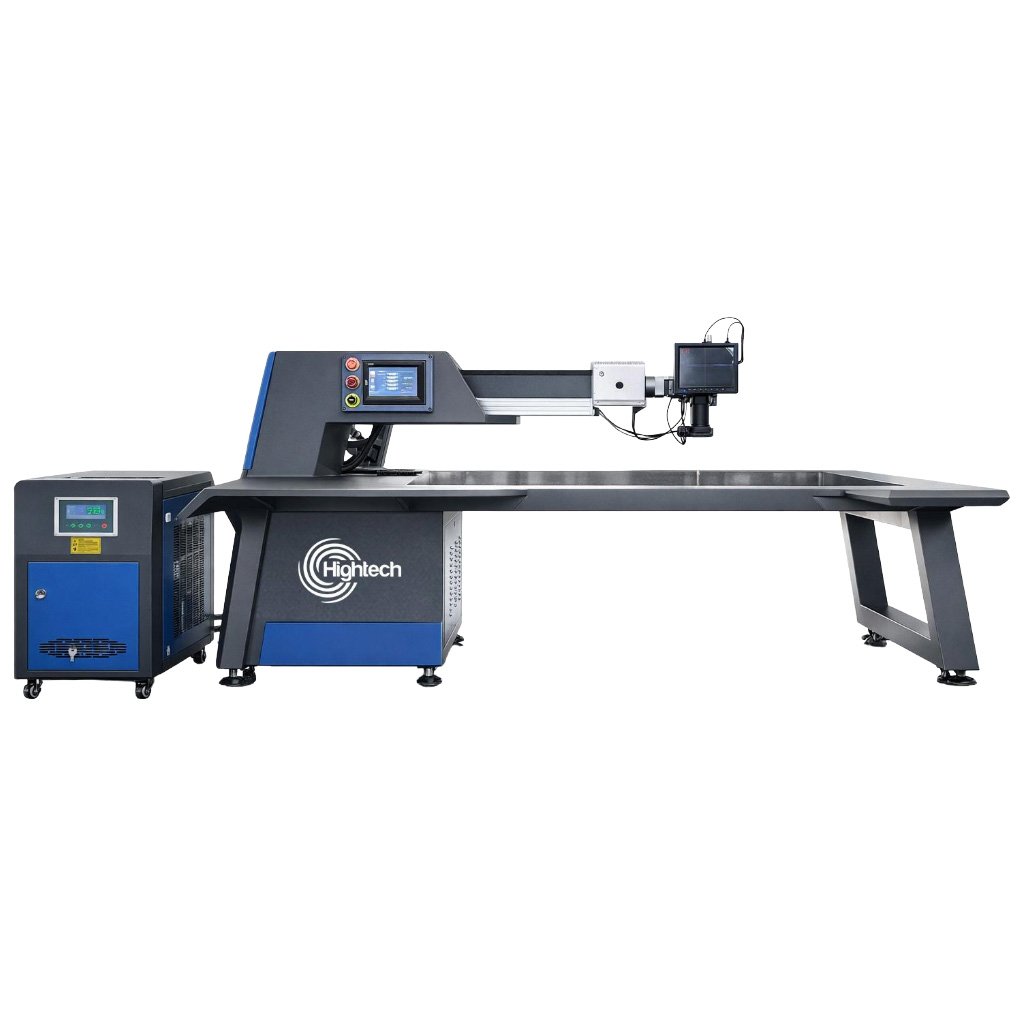

YAG Laser Welding machine HT-YG300W
- Component: Combined chassis, Super Large working platform, Mechanical arm (assembled with the combined chassis and working platform), and Chiller
- High-end brand high-power chiller adopts Panasonic, SONY, and other accessories.
- Optical accessories are all first-class brands, standard with original DOng jun A+class crystal, important ceramic core, faster welding speed, and stronger matte decay.
Product Gallery
Technical Parameters
| Laser Power |
300W |
|---|---|
| Model |
Handheld welding ,Table welding |
| Laser wave length |
1064nm |
| Monopulse Max power |
110J |
| Laser welding depth |
0.1-2.5mm |
| Pulse width |
0.1-20ms |
| Laser welding frequency |
1-50Hz |
| Whole power consumption |
≤7.5KW |
| Power |
Single Phase ,AC220V±10% ,40A ,50HZ |
| Working table |
2100*1700mm |

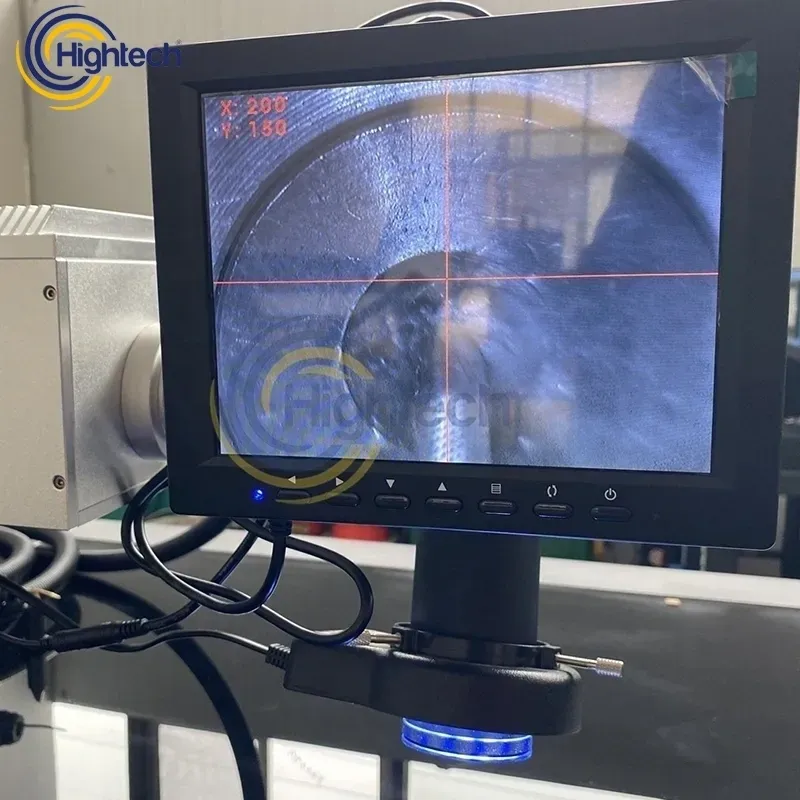

| Sight positioning |
10X CCD synchronism high definition camera |
| Laser device vertical travel |
≥200mm |
| Laser device horizontal direction |
200-800mm |
| Length of optical cable |
≥5m |
| Laser spot size adjusting range |
0.2-3.0mm |
