Mopa Laser Marking Machine

Mopa Laser Marking Machine

َAbout Product

  • Color Marking on Stainless Steel – Achieve vibrant, permanent color marks without dyes or paints.
  • Anodized Aluminum Blackening – Create high-contrast, durable marks on anodized surfaces.
  • Precision Stripping – Remove thin anodic layers from aluminum oxide plates with micron-level accuracy.
  • Metal Deep Engraving & Surface Processing – Ideal for industrial-grade engraving and high-frequency line detailing.
  • Electronics & Semiconductor Applications – Perfect for ITO coating processing and delicate component marking.
  • MOPA Fiber Laser Technology – Superior control for fine, precise marks on sensitive materials.

Technical Parameters

Laser type

MOPA

Laser Repeat frequency

1-4000 KHz

Laser wave length

1064nm

Pulse Duration

2-500ns

Marking Line speed

≤ 7000mm/s

Minimum character size

0.2 mm(Depends on the material

Marking line width

0.01 mm(Depends on the material

Software Operation Control System

EZCAD

MOPA laser marking for detailed product personalisation

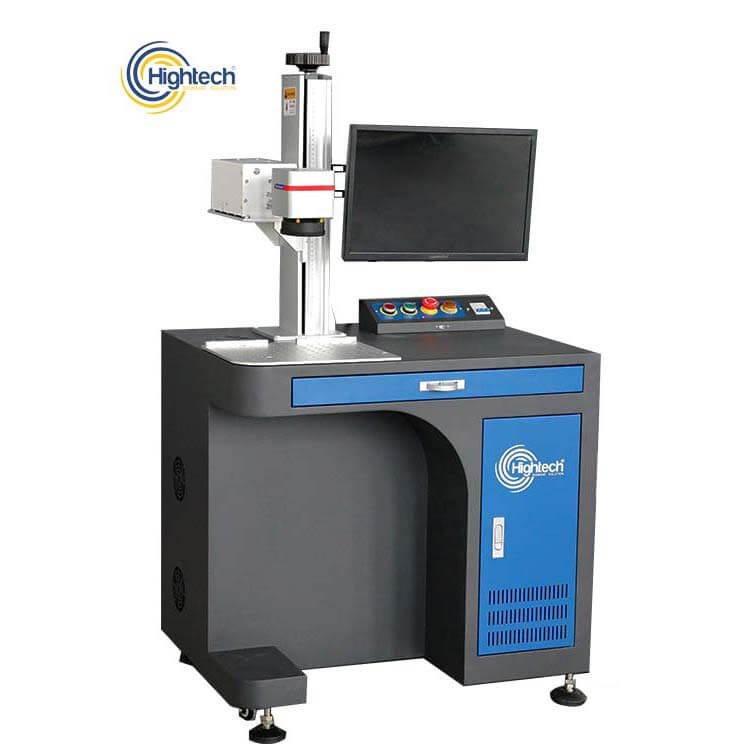

Hightech’s MOPA laser marking machine is designed for marking text, graphics and identification details on workpieces. It combines a galvo scanner, F-theta optics, double red-dot focusing and an aluminium-alloy work bed. A 500 mm lifting column supports positioning, and an optional rotary axis accommodates cylindrical marking applications.Applications include nameplates, personalised tags, marked metal components and ring personalisation. Choose the setup around the shape of your part and the result you need, with rotary equipment specified separately where required.

Focusing and workpiece positioning

Double red dot focusing

A red guideline and red dot provide a visible focusing aid when setting up a job. This helps the operator position the workpiece for marking.

Work bed with locating holes

The open aluminium-alloy work bed has locating holes for positioning workpieces. The 500 mm lifting column allows the marking head position to be adjusted during setup.

Optics and scanning components

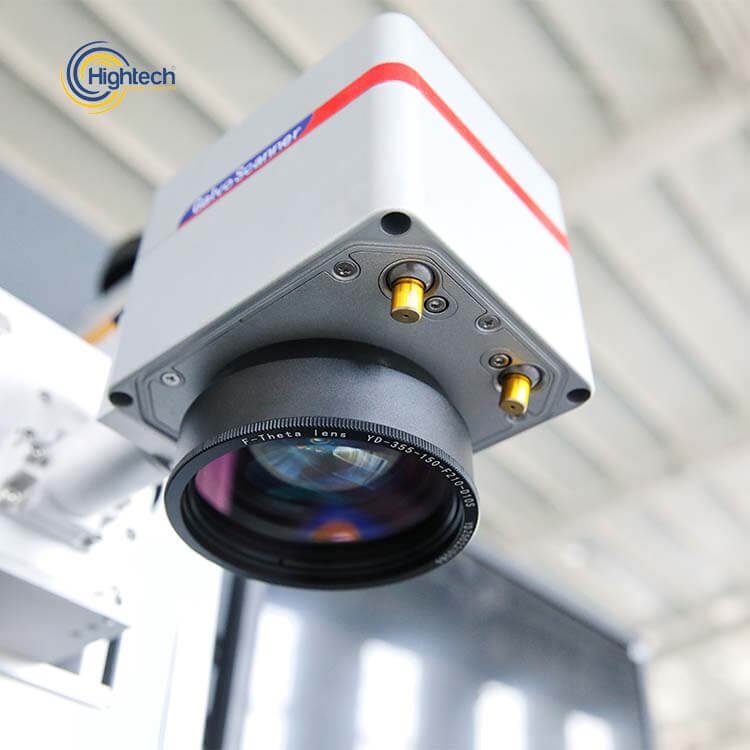

The MOPA laser marking system uses a galvo scanner to direct the marking beam. The F-theta optics use Jollystar and Wavelength lenses, with multiple lens elements and an anti-reflection coating. The control board provides interfaces for the marking system.

Marking applications

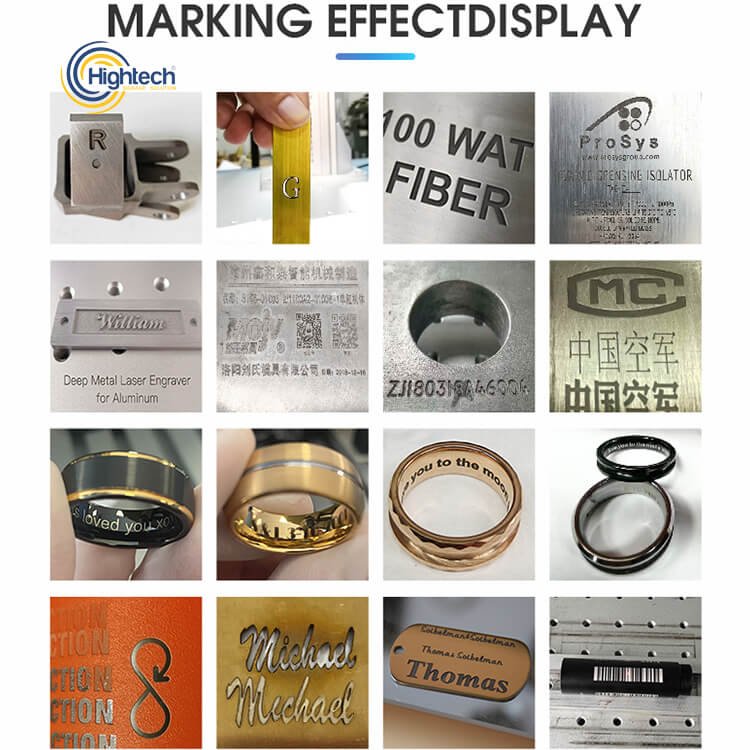

Use the machine for product personalisation and component identification where the required result can be demonstrated on your part. Application examples include:
  • Text and graphics on metal plates and components.
  • Names and decorative lettering on tags and nameplates.
  • Personalised lettering on rings using a suitable rotary setup.
  • Deep engraving on aluminium.
Share your material, surface finish, artwork and part dimensions when discussing an application. For cylindrical parts, include the diameter and the location of the mark so the rotary setup can be assessed.

Optional rotary axis for cylindrical parts

The D80 rotary axis is an optional accessory with a 2–70 mm clamping range and a 130 mm axis height. It provides a rotary setup for applications such as ring personalisation. Ask Hightech to confirm the fit of your workpiece and the rotary configuration in your quotation.Explore our marking machines within the Machinery range.

Warranty: 1 year.

Get Quote

Please share your company name, email address, and the product you are looking for

why us?

Why Choose Hightech for Marking Machines?

Application-Based Machine Selection

Hightech helps buyers select a suitable marking machine based on the material, surface condition, required contrast, marking area, production speed and application. Material testing and machine demonstrations can also be arranged before purchase.

1-year warranty and support under the applicable terms

Hightech marking machines include a 1-year warranty and technical support under the applicable terms. Replacement parts and remote technical assistance are available for supported machines when service is required.

Installation, Training and Technical Assistance

Hightech provides remote installation guidance, machine setup assistance, operator training, software support, troubleshooting and maintenance guidance to help customers operate their marking equipment correctly.

Global Sales and Service Network

Hightech serves customers in more than 112 countries through international branches, sales hubs and 38+ active global agents. Worldwide remote support is available, while local or in-person service may be provided in supported regions.

Get Expert Assistance

Get product details, technical guidance, and answers to your questions directly from our sales team. Contact us today on WhatsApp.

Contact Us
+1 (555) 743-9465

FAQ

Frequently Asked Questions

Yes. We export machines, equipment, and materials worldwide, including:

  • North America
  • South America
  • Europe
  • Middle East
  • Asia
  • Africa
  • Australia

Our machines are manufactured by Shandong Hightech Industry Co., Ltd. in China, with global sales and support through our international branches and partners.

Yes. Hightech Industry Group currently has branches, partners, or support networks in:

  • Canada
  • USA
  • Mexico
  • UAE
  • India
  • England
  • China

Availability of local stock, support, and services may vary by region.

Yes. We provide machine demo videos, tutorials, customer feedback videos, and production samples for most machine models.

Our sales team can also provide real production videos based on your application requirements.

Yes. Spare parts and consumables are available for all supported machine models.

Replacement parts can be shipped worldwide by express courier, air cargo, or sea freight.

Yes. Some machines can be customized based on:

  • Voltage requirements
  • Working area size
  • Power configuration
  • Language settings
  • Optional accessories
  • Special production requirements

Please contact our sales team for customization options.

  • Factory-direct pricing
  • Worldwide shipping
  • technical support under the applicable terms
  • Experienced international sales team
  • Professional training assistance
  • Local support in multiple countries
  • High-quality industrial machines
  • Trusted by customers worldwide since 2008

Yes. We provide after-sales support under the applicable terms for all machines.

Our support includes:

  • Remote installation assistance
  • Machine setup guidance
  • Operation training
  • Troubleshooting support
  • Software assistance
  • Maintenance guidance

For customers in regions where we have local branches or partners — including USA, Canada, Mexico, UAE, India, and England — in-person service and technical support may be available depending on scheduling and location.

For customers in other countries, support is primarily provided online through WhatsApp, Zoom, WeChat, email, and video calls. In-person overseas service may also be arranged if required; however, transportation, visa, accommodation, and related travel expenses are the responsibility of the buyer.

All machines from Hightech Industry Group come with a 1-year warranty and after-sales technical support under the applicable terms.

During the warranty period, if any non-human-damaged parts have issues, we provide replacement parts and technical assistance remotely.

Warranty coverage does not include consumables, accidental damage, improper operation, unstable power supply, or unauthorized modifications.

We offer worldwide shipping with multiple shipping options, including:

  • EXW
  • FOB
  • CIF
  • DDP (Door-to-Door)

Depending on the destination country, we can arrange customs clearance, import duties, and local delivery services through our logistics partners.

Most machines include:

  • Operating software
  • Standard accessories
  • Tool kits
  • User manuals

Some models may also include:

  • Air compressor
  • Water chiller
  • DSP controller
  • Spare parts kits

Computer inclusion depends on the machine model and quotation details.

Power requirements depend on the machine model.

Most machines use:

  • 220V or 380V power supply
  • Single-phase or three-phase electricity

Detailed power requirements are provided before shipment. Customers are responsible for preparing sufficient power supply and electrical setup.

Our machines are widely used in industries such as:

  • Signage manufacturing
  • Metal fabrication
  • Advertising production
  • Woodworking
  • Acrylic fabrication
  • Sheet metal processing
  • Industrial manufacturing
  • Custom production workshops

Yes. Many of our customers are new business owners or workshops starting their first production line.

Our machines are designed to be user-friendly, and we provide training videos, manuals, and remote guidance to help customers start production quickly.

Our standard payment terms are:

  • 30% deposit to start production
  • 70% balance before shipment

For some local stock machines or special promotions, full payment before delivery may apply.

We accept:

  • Bank wire transfer (T/T)
  • International bank transfer
  • Local payments through selected regional branches

Production and delivery time depends on the machine model and destination country.

Estimated production time is usually:

30–60 working days for most machines

Shipping time varies by destination and shipping method.

Our sales team will provide an estimated timeline before order confirmation.

Can I use this MOPA laser for medical devices?

Contact Hightech to discuss your specific medical-device marking requirements. Provide the material, surface finish, required mark and any applicable validation criteria. Suitability for your application must be confirmed before purchase; medical-device compliance should not be assumed from the machine’s marking capabilities alone.

How is the marking position set up?

The machine has a double red-dot focusing aid with a red guideline, a work bed with locating holes and a 500 mm lifting column for head positioning.

Can the machine be configured for ring marking?

Yes. An optional rotary axis provides a setup for cylindrical marking applications such as ring personalisation. Confirm the workpiece fit and mark position when specifying the rotary equipment.

Is the rotary axis included as standard?

The rotary axis is optional. The D80 version has a 2–70 mm clamping range and a 130 mm axis height; request it explicitly if your application requires it.
