HT1 Channel letter bending machine

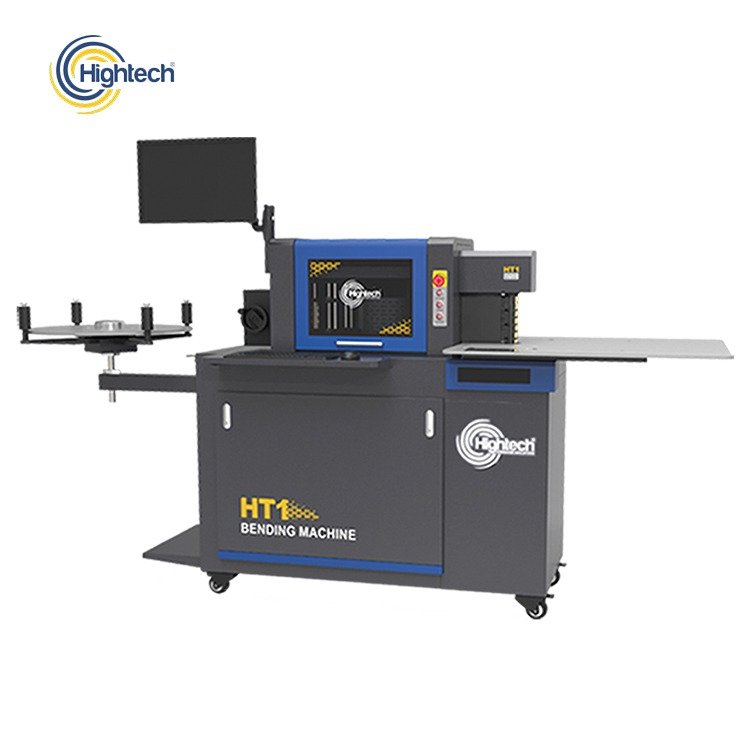

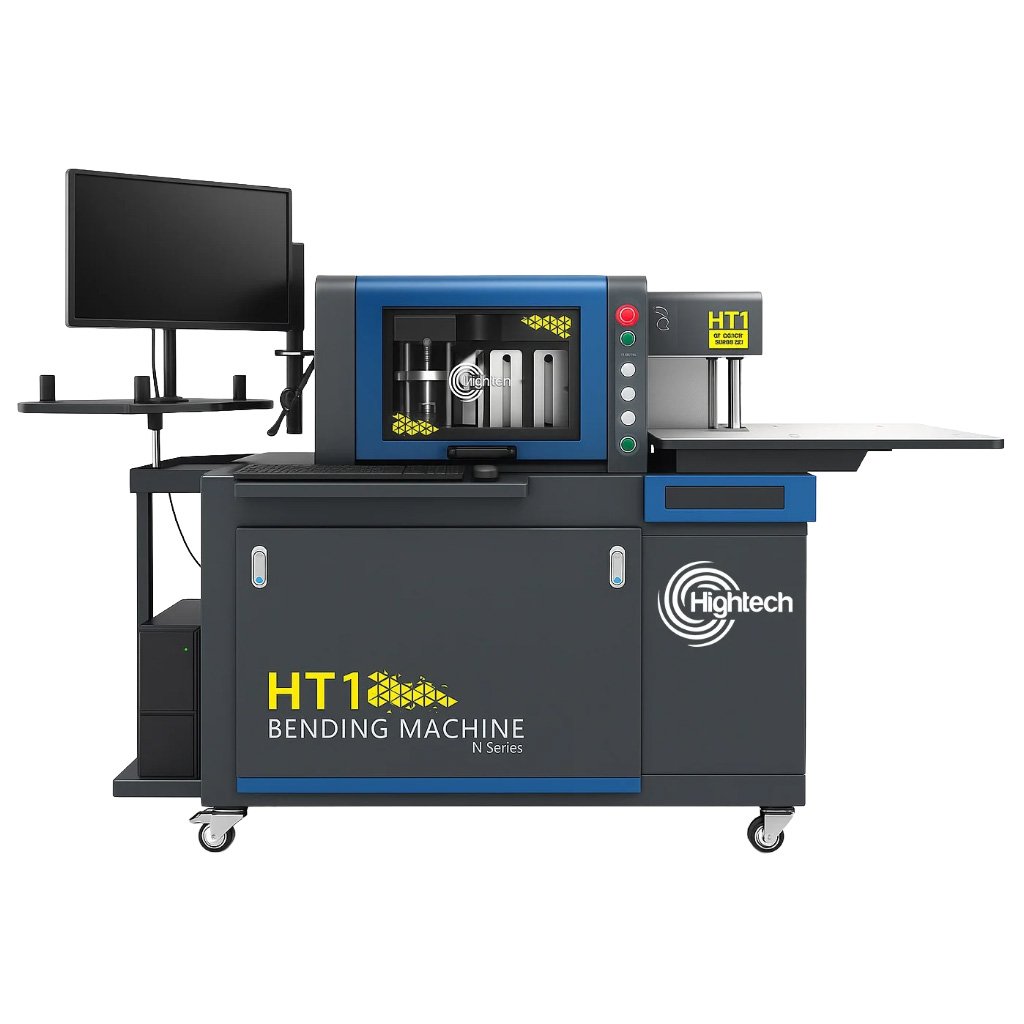

Introducing HT1 Channel Letter Bending Machine

The HT1-N is a high-precision, fully automated bending solution built for next-generation signage production. Combining intelligent control, stable mechanics, and seamless workflow integration, it delivers exceptional accuracy and consistency with every curve and cut.

• Smart automation system ensures precise calibration, reduced setup time, and effortless operation.

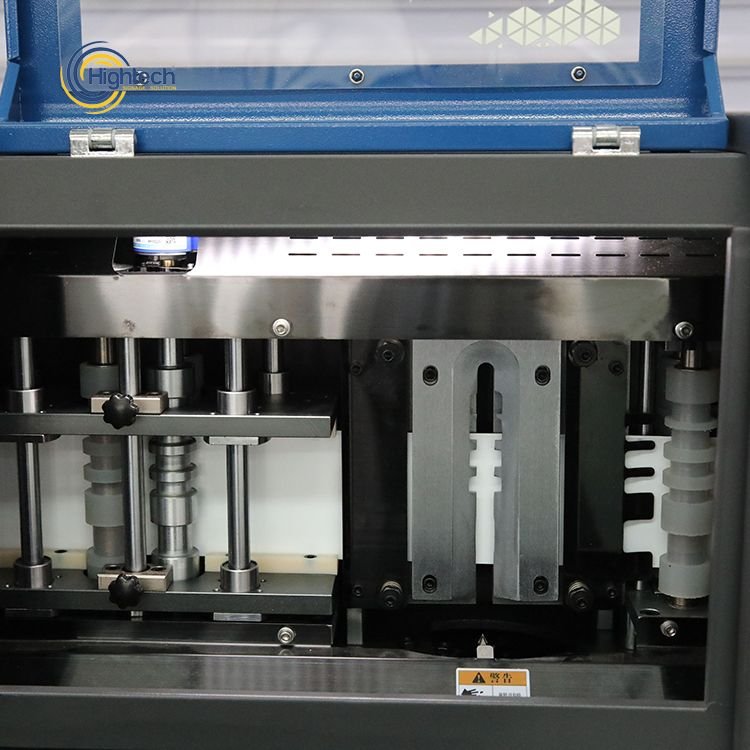

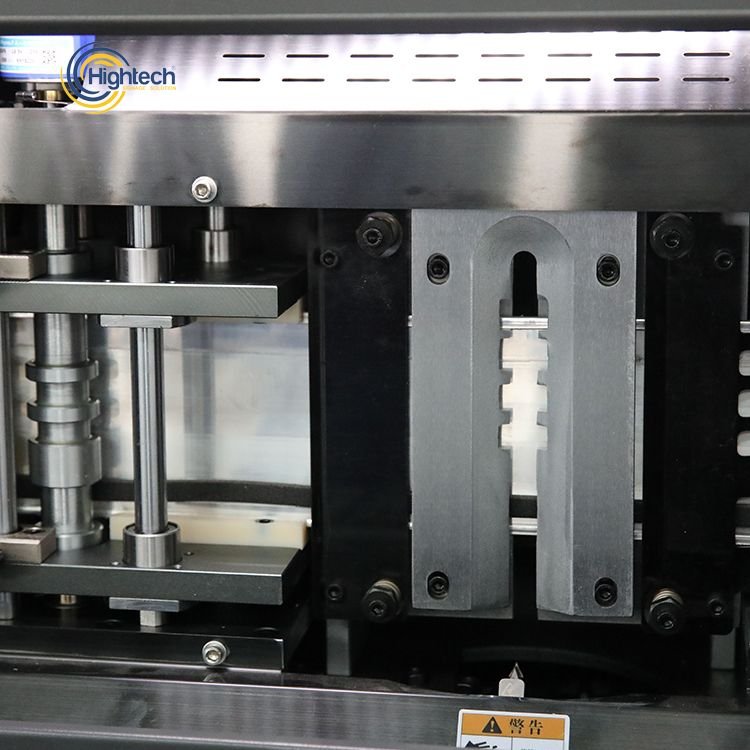

• Dual-milling and feeding design provides smooth, burr-free bending on aluminium and Channelume materials.
• High-strength alloy tools guarantee durability and long service life under continuous operation.
• Supports multiple input formats (DXF, AI, PLT) for fast design-to-production transitions.
• Compact industrial build with optimized maintenance and reliability for demanding production environments.

Advanced Engineering & Components

Proprietary Bending Software & Precision Control

The HT1 is powered by an in-house developed software system designed for continuous improvement and maximum production efficiency. This intelligent interface features multi-point grooving, tool radius compensation, and a unique “Material Memory” function that allows for one-click material changes. Paired with a fully integrated Precision Driver system, the machine offers absolute control over the feeding, cutting, and bending synchronization, unlocking specialized functions like contour offset and glue weight calculation that are essential for complex signage projects.

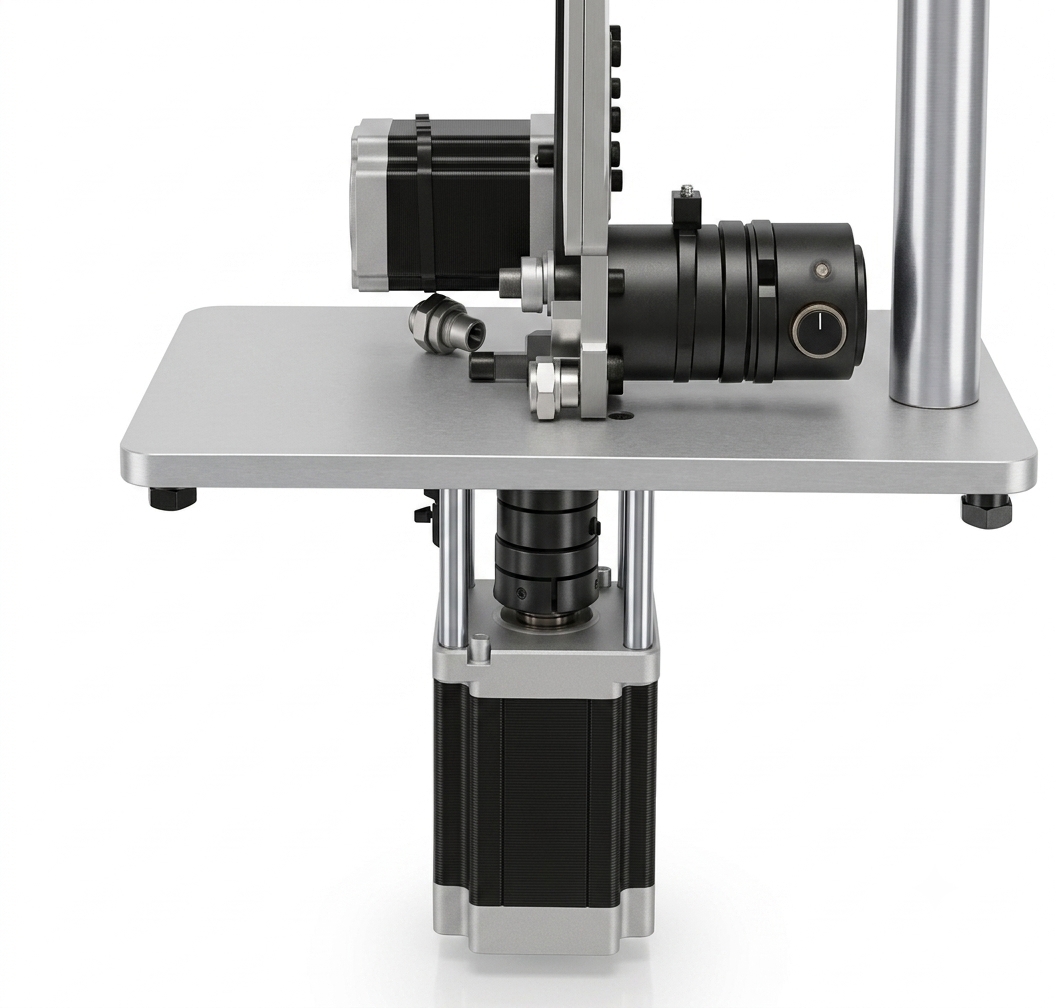

High-Torque Industrial Motors & Stability

At the heart of the HT1 are high-performance industrial motors engineered to provide consistent, high-torque power even under heavy 24/7 workloads. These motors work in perfect harmony with the CNC system to deliver rapid response times while significantly reducing energy consumption. This robust mechanical foundation ensures that the machine maintains its structural integrity and precision over years of operation, preventing the common calibration drift found in lighter-duty models.

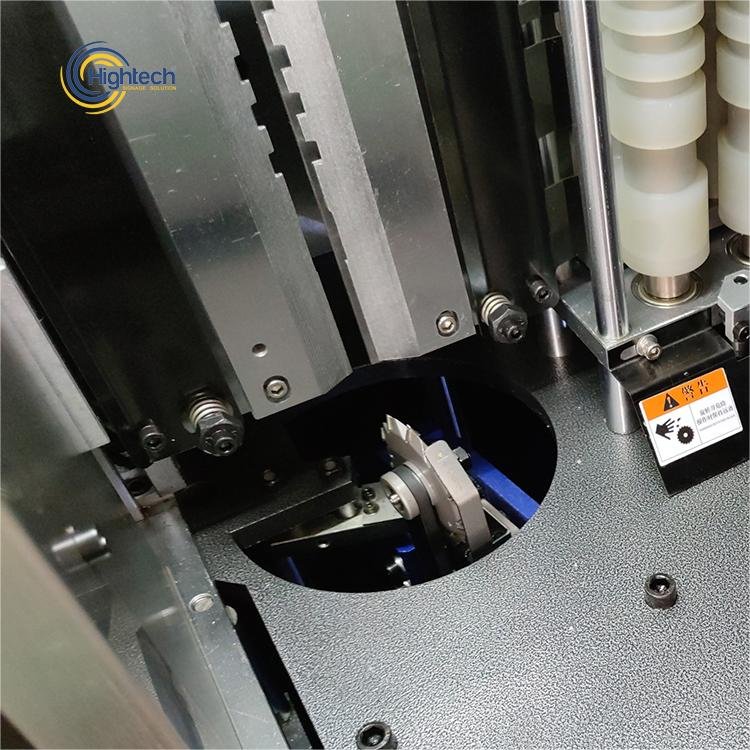

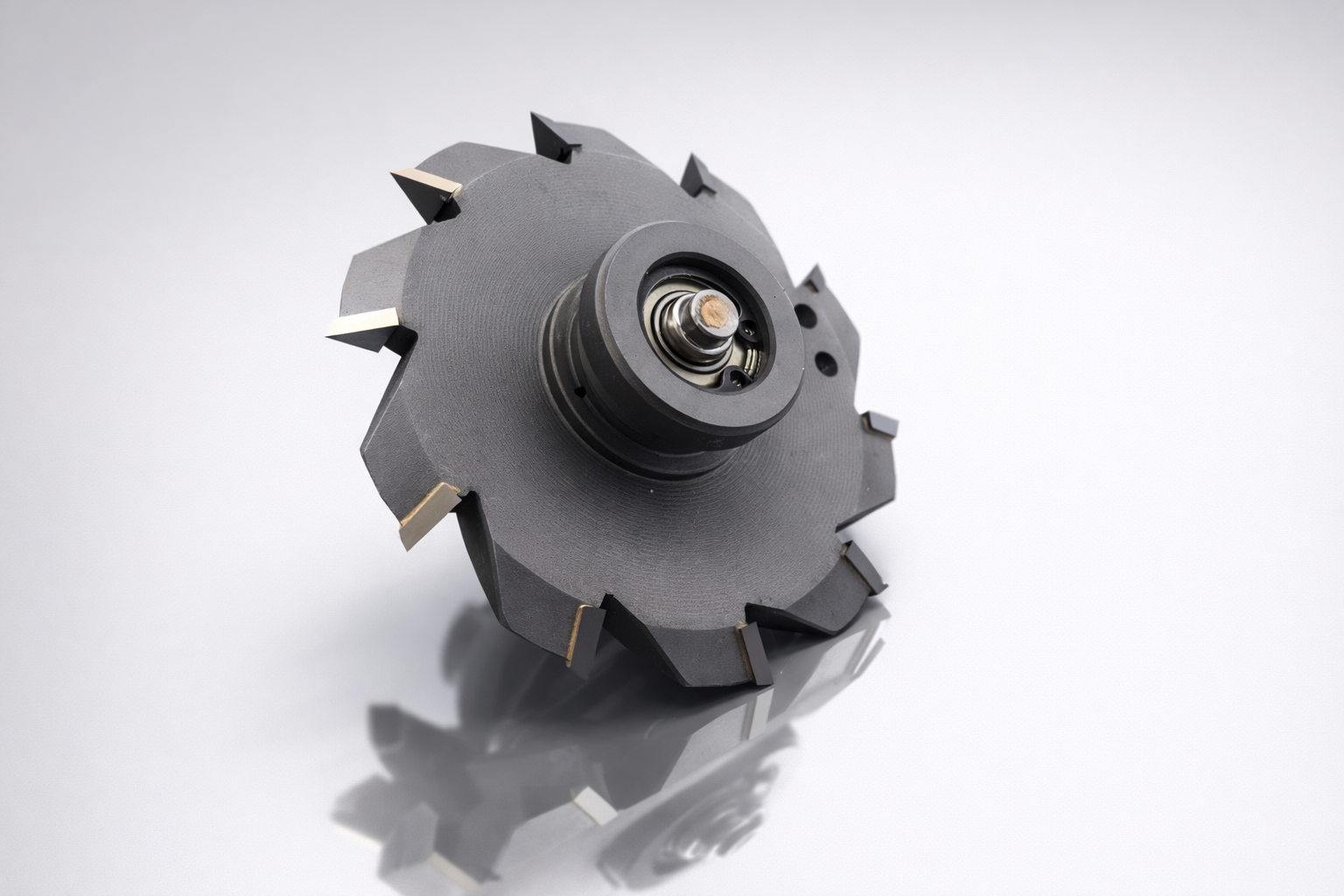

Reinforced Cutting & Grooving System

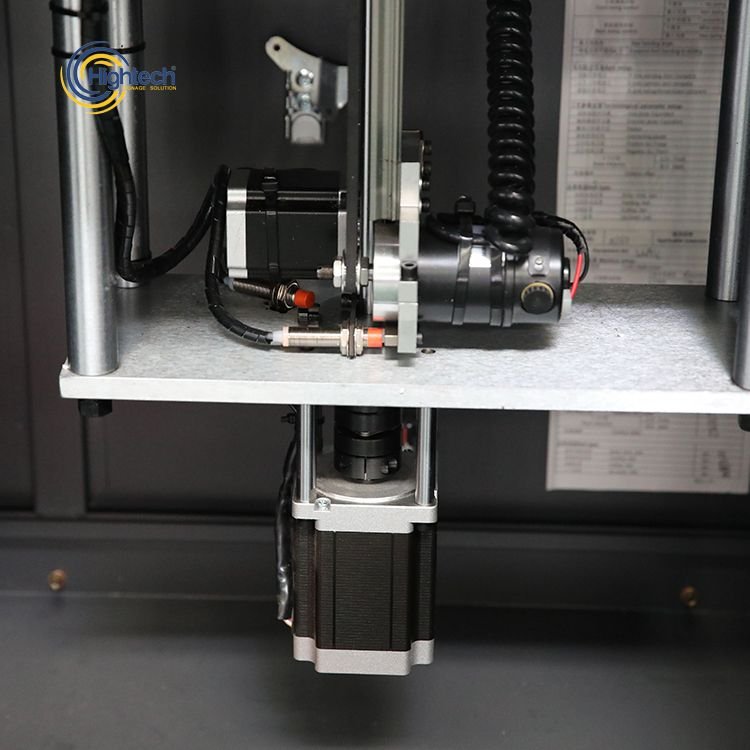

Precision starts with the cut. The HT1 features a sophisticated cutting system equipped with a 75mm blade diameter and 10 cutting heads, supported by a 2.0 square guide rail for enhanced stability. The system includes an Auto-Angle Recognition feature with motorized height adjustment, allowing for front and back oscillating motions. This 4-column reinforced structure ensures that every groove is perfectly steady, high-quality, and executed with automatic depth control via the software, regardless of the material’s temper or thickness.

Key Technical Features

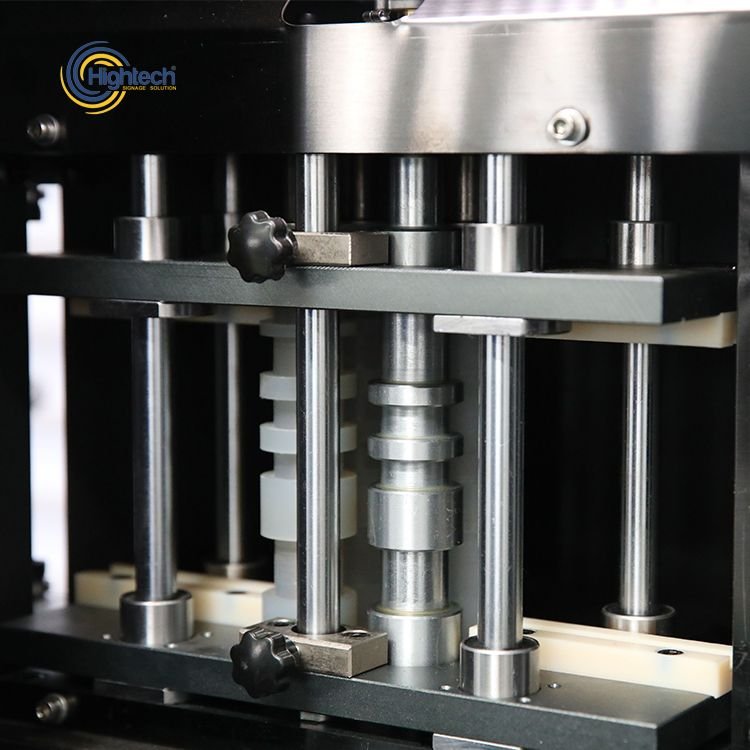

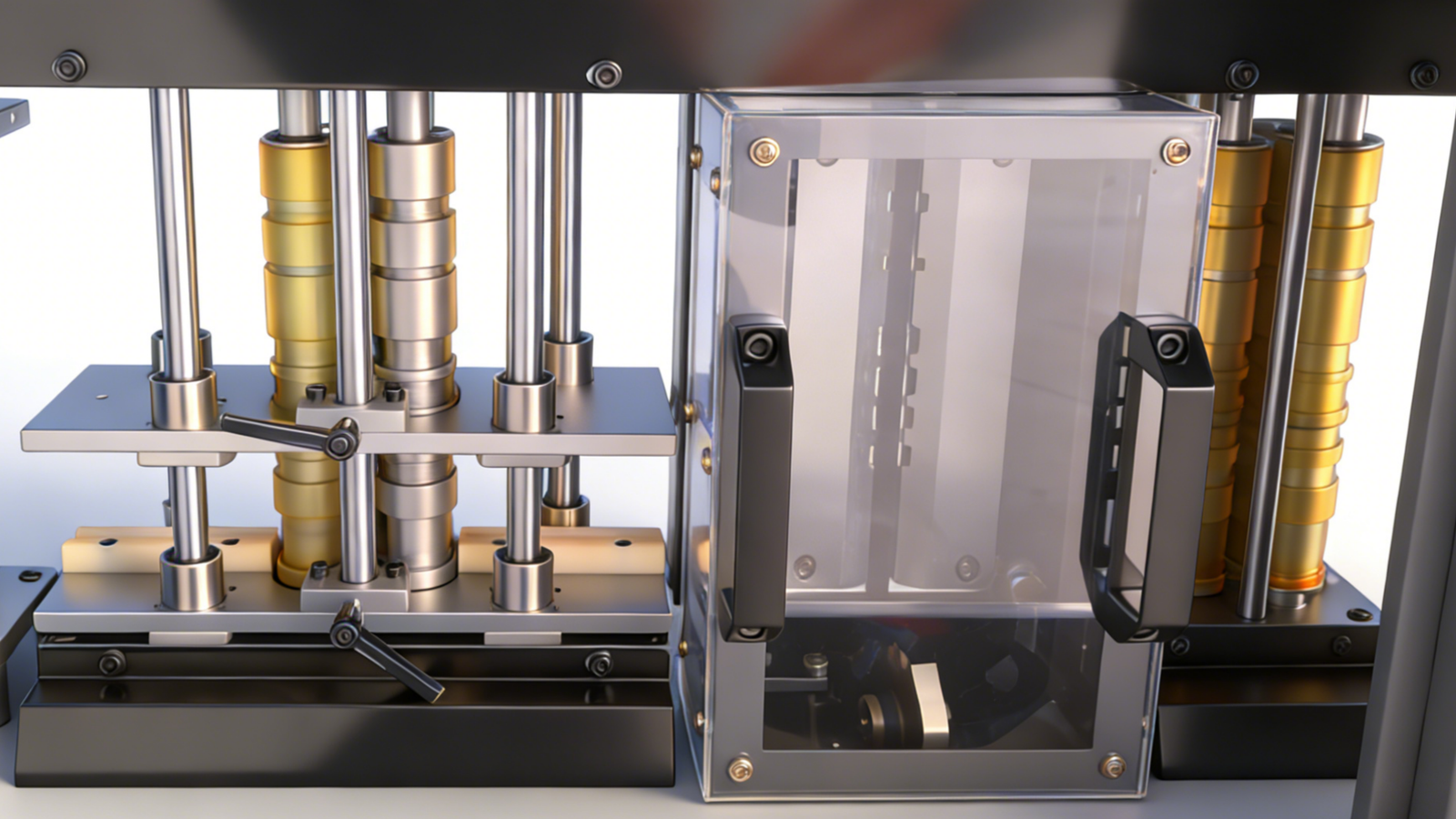

Double-Rod Linkage Bending: Specifically designed for smooth bending of aluminum strips and profiles, ensuring scratch-free and mark-free surfaces on every letter. High-Precision Encoder: The feeding system utilizes a high-quality encoder that ensures strip feeding with a strict ±0.01mm tolerance, eliminating distortion in large-scale characters. 360° Versatility: Ability to cut and create precise notches from both sides, enabling the creation of sharp edges and perfect curves on even the smallest font sizes.

Why Choose HT1-N

Extreme Precision: Maintains up to ±0.01 mm feeding accuracy via high-quality encoders for flawless letter manufacturing. Industrial Reliability: Built with a reinforced chassis for maximum stability and continuous 24/7 heavy-duty production. Seamless Compatibility: Supports all major design formats including DXF, AI, and PLT for a smooth transition from design to machine. Enhanced Productivity: Optimized motor synchronization speeds up the bending process without sacrificing curve quality.

Applications

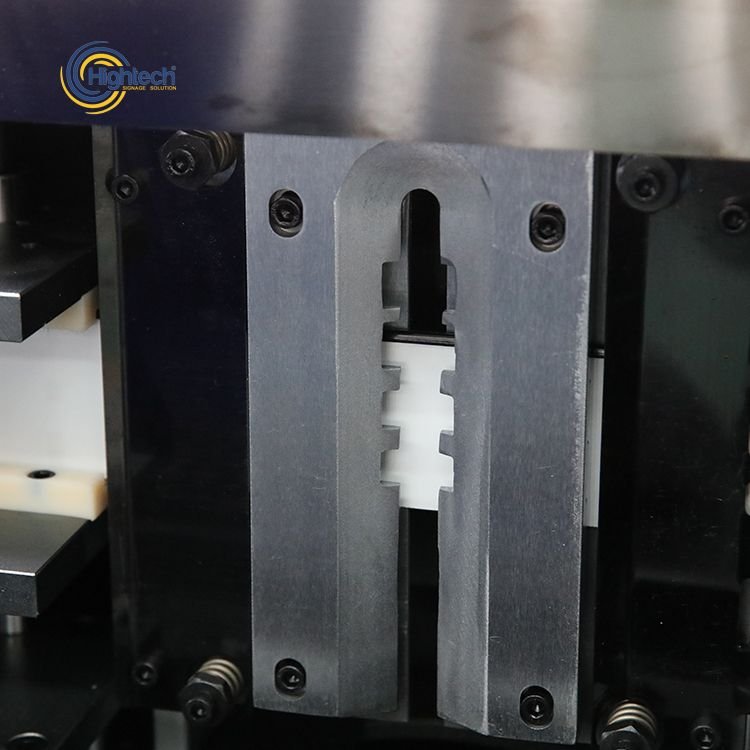

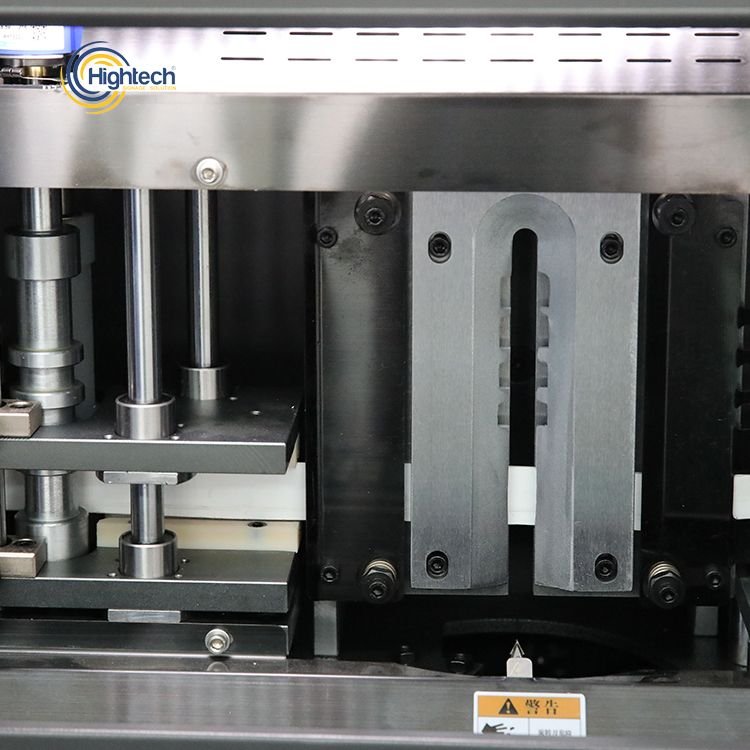

Premium Signage Fabrication: Ideal for producing high-end illuminated and non-illuminated channel letters for retail, corporate branding, and architectural projects. Intricate Small-Scale Fonts: Thanks to its high-precision bending and dual-side notch cutting, the HT1 is perfect for creating complex, small-scale characters and detailed logos that require sharp angles and smooth curves. Diverse Material Workflows: Efficiently processes a wide range of materials including flat aluminum coils, single-edge coils, trimless profiles, and stainless steel, making it a versatile asset for any modern sign shop. Large-Format Signage: The high-torque industrial motors and precision encoder system allow for the stable production of oversized letters and large-scale architectural sign systems without loss of accuracy. Architectural Installations: Perfect for producing precision decorative sign systems and specialized profiles used in contemporary interior and exterior architectural designs.
