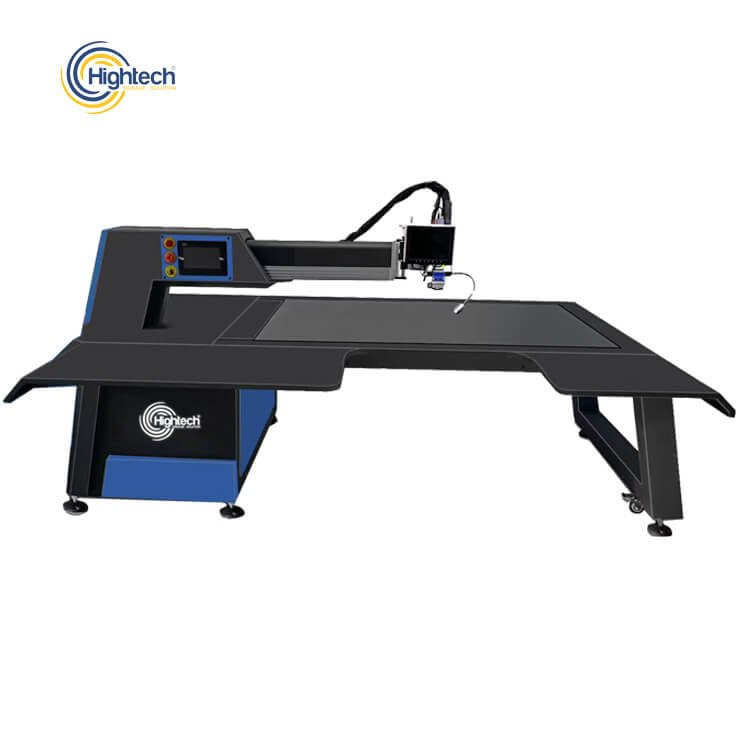

HT QCW 750Y Laser Welding Machines
- Energy Saving
Our welding machine consumes only 1 kWh per hour. - Zero Consumables
The innovative pump-source optical design eliminates need for cavities, crystals, xenon lamps or reflector mirrors. This significantly reduces long-term maintenance costs and downtime. - Maintenance-Free Operation
The fully sealed laser module requires no optical realignment and maintains perfect calibration even during transport or vibration, ensuring consistent performance. - Intuitive Usability
Designed with familiar YAG welder operation principles, our machine features an ergonomic interface and large workbench for comfortable, efficient welding sessions. - Versatile Dual-Mode Design

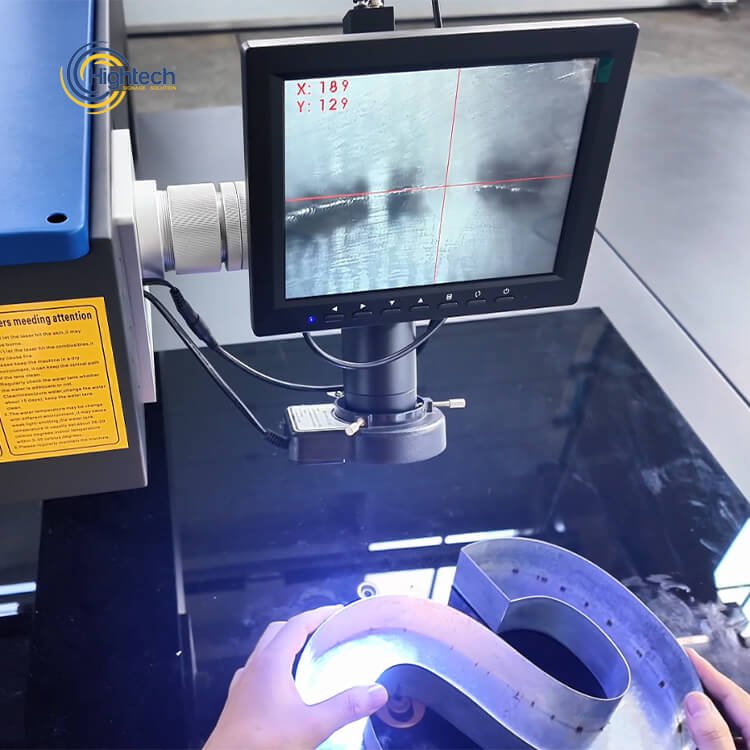

Switch effortlessly between stationary and handheld operation. The stationary platform includes a CCD screen, while the handheld unit offers exceptional mobility with its 8-meter cable. - Superior Welding Speed
With triple the pulse frequency of YAG welders, our machine dramatically increases production throughput without compromising quality. - Wide Material Compatibility

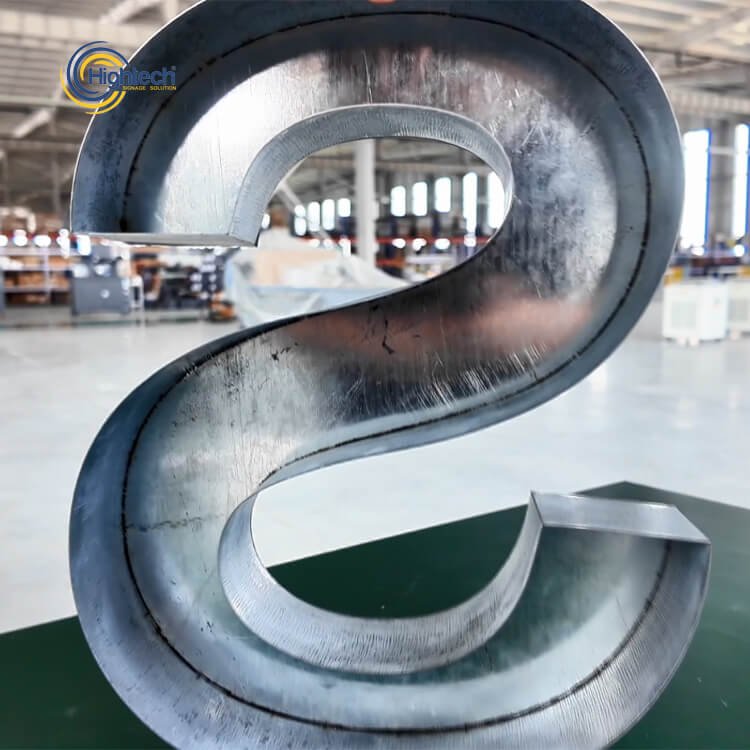

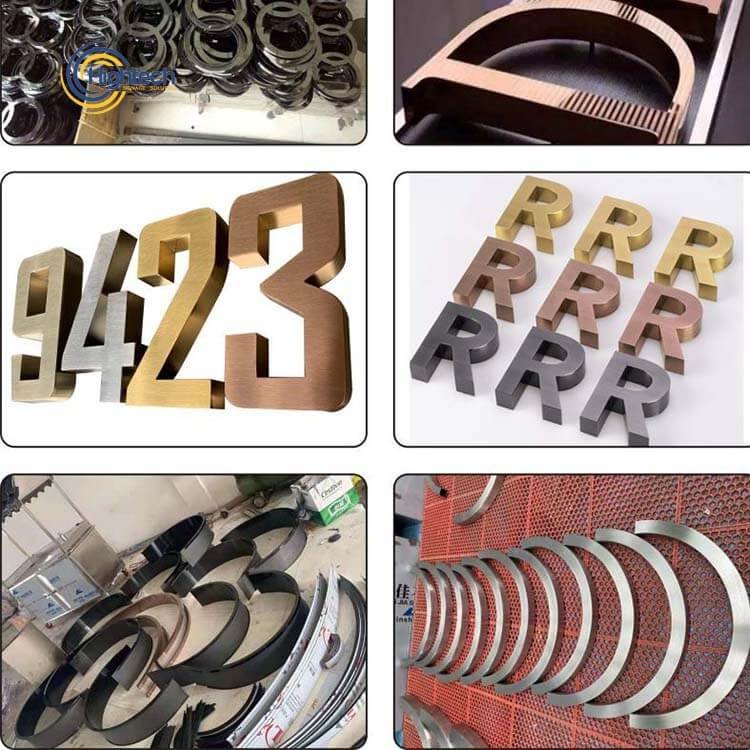

Expertly welds various metals including stainless steel, galvanized sheets, iron plates, and titanium with consistent, reliable results.
Product Gallery
Technical Parameters
| Laser Power |
750W |
|---|---|
| Laser wave length |
1080nm |
| Maximum energy per pulse |
30J |
| Pulse width |
0.2-50ms |
| Laser welding frequency |
1-1000Hz |
| Maximum penetration depth of welding |
0.1-3mm |
| Power |
AC220V±10% |
| Fiber length |
5-8m |
