Nitrogen Generation System
- Nitrogen Flow: 60 Nm³/h (adjustable) – Standard flow measurement at 0°C, 0.101 MPa
- High Nitrogen Purity: ≥99.99% (oxygen-free content) – Premium gas quality standard
- Nitrogen Outlet Pressure: 189±8 SPI (adjustable) – Precise pressure control
- Low Dew Point: ≤-40°C – Excellent moisture control
- Ultra-Fine Filtration: Particle size ≤0.01 μm – Superior filtration system
- Minimal Oil Content: ≤0.003 ppm – Clean, contamination-free nitrogen
- Standard Conditions: All pressures are gauge values unless specified
- Flow Measurement: Nm³/h = Normal cubic meters per hour at 0°C, 0.101 MPa
- Purity Standard: Volume percentage (V/V) in oxygen-free conditions
Product Gallery
Technical Parameters
| Nitrogen flow |
60 Nm³/h |
|---|---|
| Nitrogen purity |
≥ 99.99% |
| Nitrogen outlet pressure |
189 ± 8 SPI |
| Nitrogen dew point |
≤ -40°C |
| Nitrogen dust particle size |
≤ 0.01 µm |
| Nitrogen oil content |
≤ 0.003 ppm |

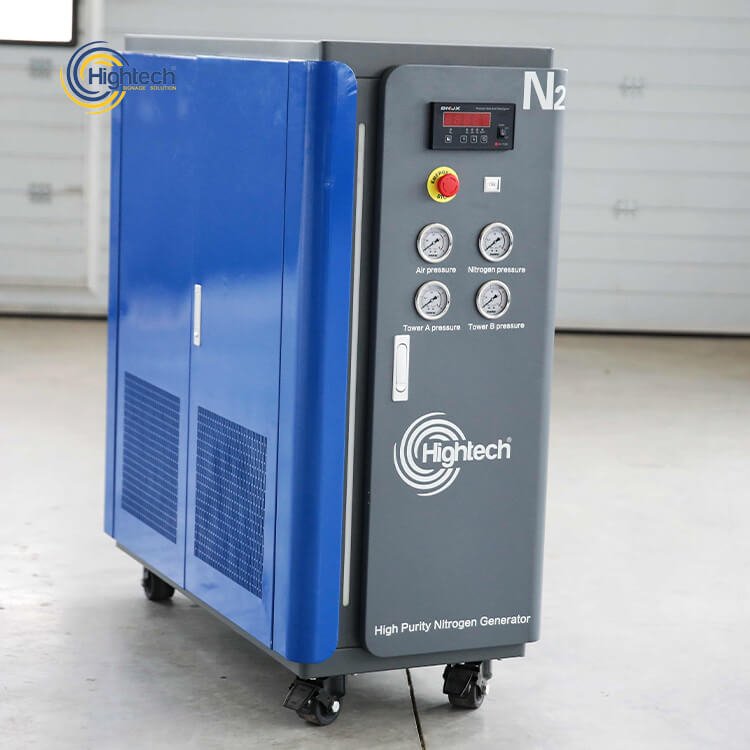

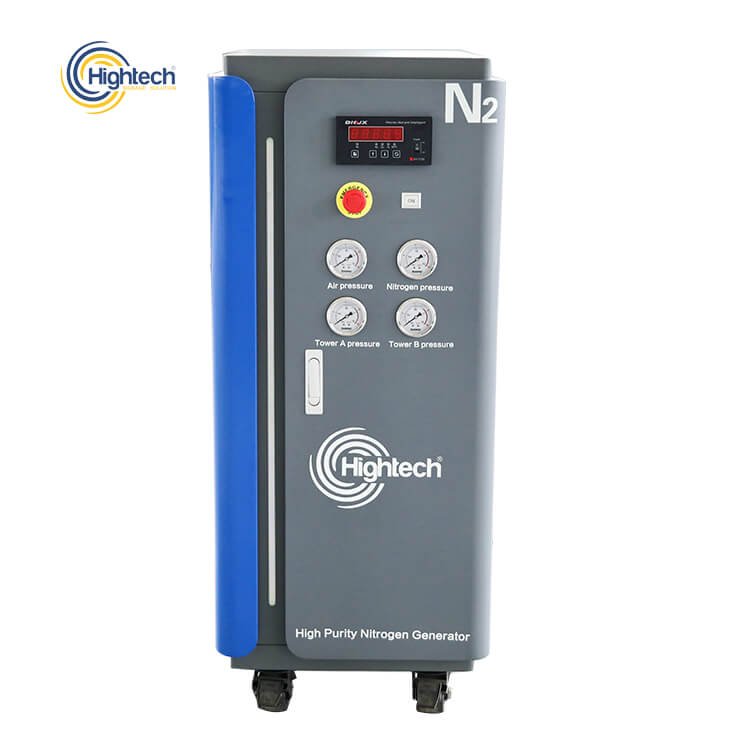

Introducing Nitrogen Generation System

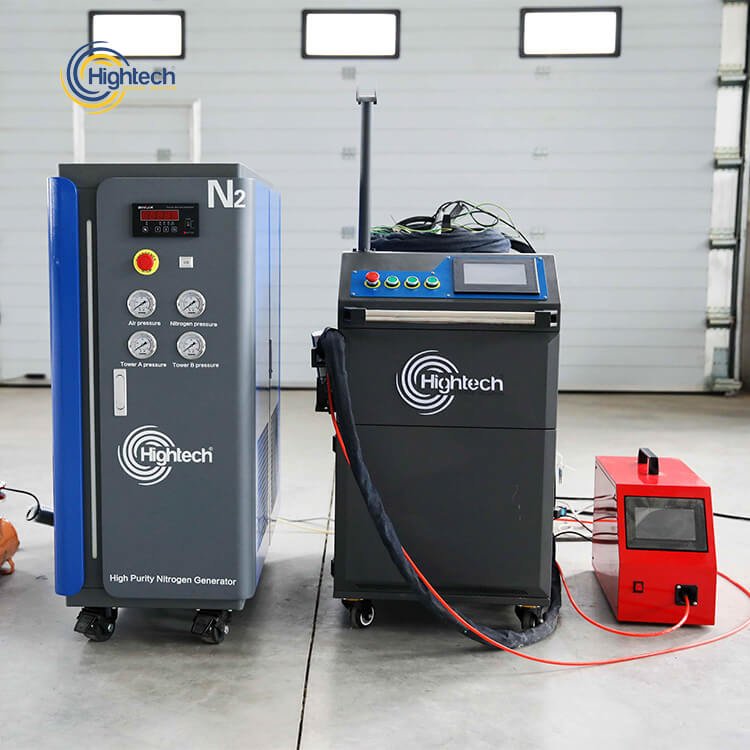

The Nitrogen Generation System is a high-performance gas supply solution designed for laser welding, cutting, and industrial applications that demand stable, high-purity nitrogen. Delivering up to 60 Nm³/h with adjustable flow and ≥99.99% purity, this system ensures oxygen-free, moisture-controlled nitrogen output suitable for precision manufacturing environments.Key Highlights
- High Purity Output: Consistent nitrogen purity of ≥99.99% for oxygen-free applications.
- Stable Pressure Control: Adjustable outlet pressure at 189±8 PSI for reliable equipment performance.
- Ultra-Dry Nitrogen: Low dew point ≤-40°C ensures excellent moisture removal.
- Clean Filtration: 0.01 μm particle filtration with oil content ≤0.003 ppm.
Key Features
Adjustable Nitrogen Flow: Delivers up to 60 Nm³/h under standard conditions (0°C, 0.101 MPa), with precise regulation to support various industrial processes.High-Purity Filtration System: Advanced multi-stage filtration ensures oxygen-free, contamination-free gas output with ultra-low oil content for sensitive equipment.Moisture-Control Performance: Dew point ≤-40°C guarantees dry nitrogen suitable for laser welding, cutting, and applications requiring strict humidity control.Stable Pressure Output: Nitrogen outlet pressure 189±8 PSI, fully adjustable to meet the pressure needs of different machines and gas-assisted workflows.Industrial-Grade Construction: Engineered for continuous operation with reliable components, ensuring long service life and consistent nitrogen quality.Why Choose This Nitrogen Generation System
Improved Welding & Cutting Quality: Provides clean, dry nitrogen that enhances weld bead formation, reduces oxidation, and supports smooth laser cutting edges.Cost-Effective Operation: Eliminates dependency on nitrogen cylinders, reducing long-term operating costs and supply interruptions.High Stability & Safety: Consistent purity and pressure minimize process variation, ensuring repeatable results across all production shifts.Low Maintenance: Robust internal filtration and oil-removal system extend service intervals and ensure minimal downtime.Applications
Laser Welding & Cutting: Provides stable nitrogen flow for high-precision welding, cutting, and metal surface protection.Electronics & Semiconductor Manufacturing: Supports oxidation-free environments for PCB production, component packaging, and sensitive assembly processes.Food & Packaging Industry: Suitable for modified atmosphere packaging (MAP), extending product shelf life with high-purity nitrogen.Chemical & Pharmaceutical Production: Ideal for inerting, purging, and moisture-sensitive material handling.Get Quote
