HT R3 Q CNC Router Engraving Machine
- Warranty: 1year
- Sturdy Structure – Industrial-grade welded steel base for high stability; precision-machined XY-axis guide rails for durability and accuracy.

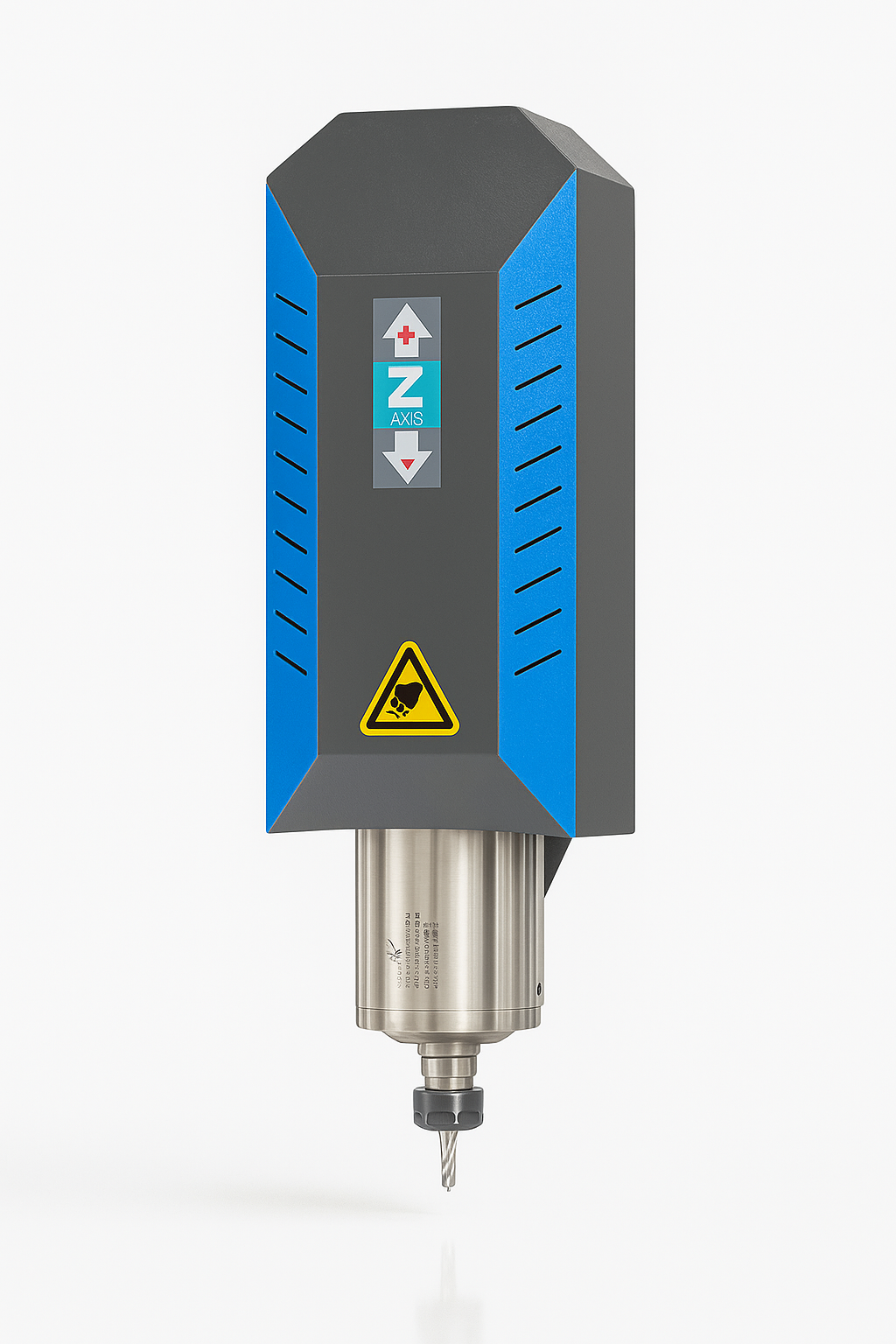

- High-Torque Spindle – 3.2 kW water-cooled spindle ensures precision even at high speeds.

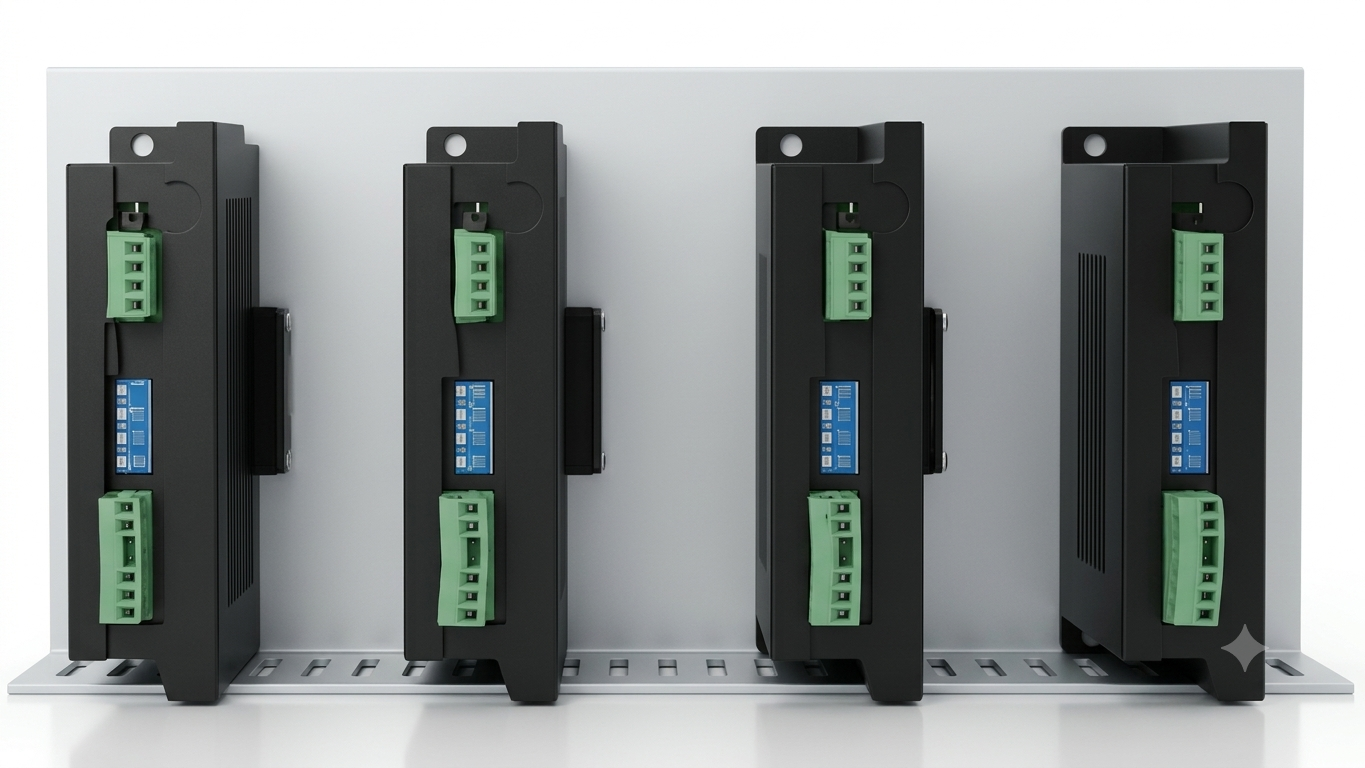

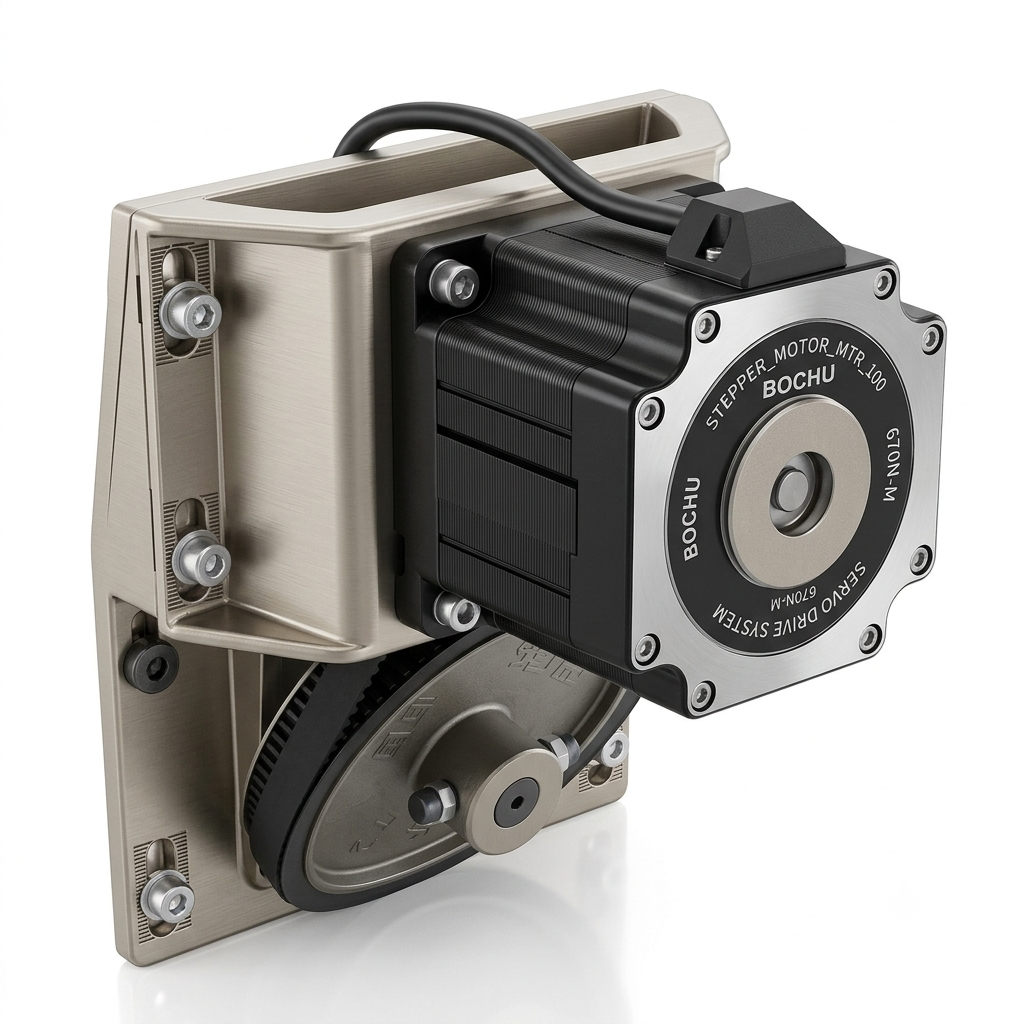

- High-Speed Drive System – XYZ axes equipped with Lesai drives and 450A electronics for torque, speed, and long-term reliability.
- Precision Motion System – X/Y-axis 2.0 square linear guides + Z-axis TBI ball screw for accurate cutting.
- Rack & Pinion Drive – 1.25-module fine-ground gears ensure smooth high-speed operation.

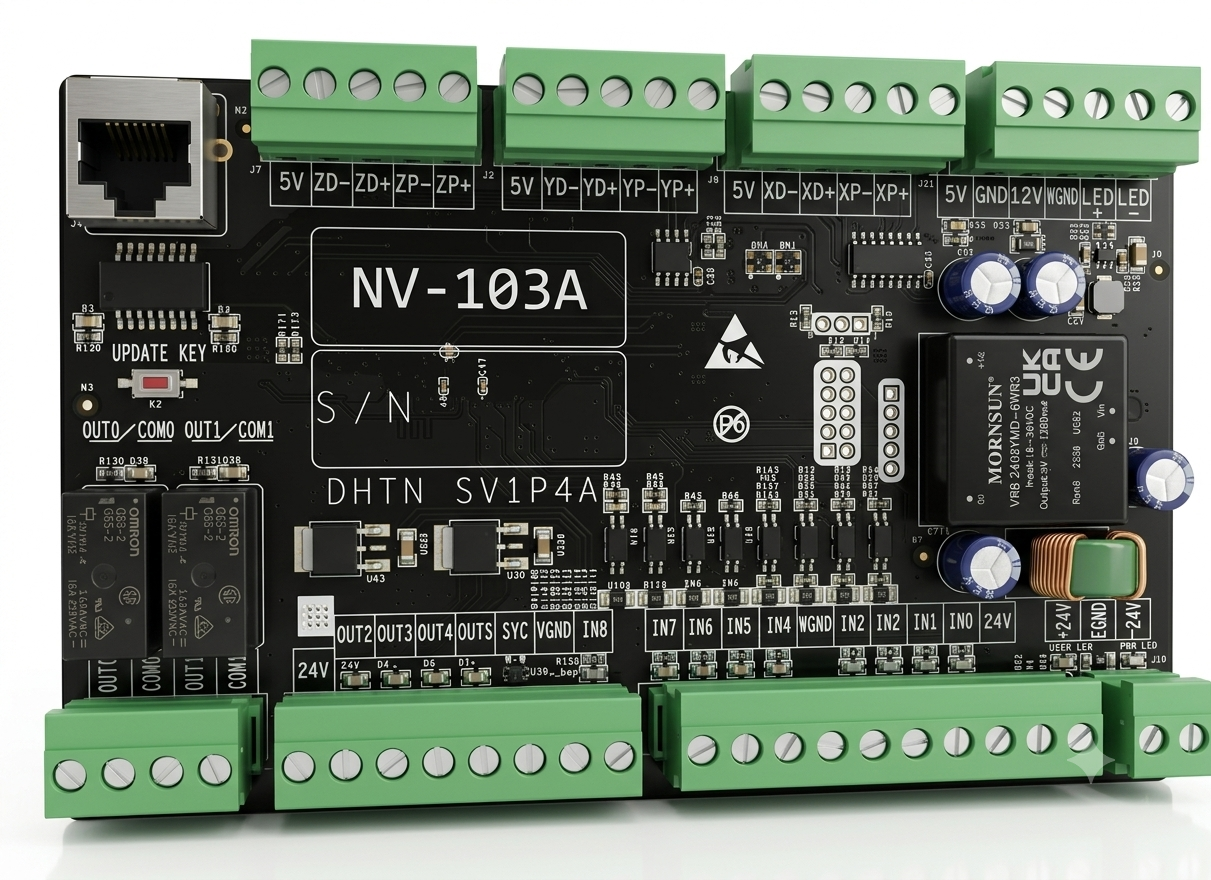

- Advanced Control System – Industrial-grade, multi-window compatible with CAD/CAM software for efficient 3D carving/cutting.
- Stable Electronics – 3.0 kW inverter with military-grade EMI filtering for interference-free operation.
- Durable Worktable – Aluminum T-slot design, maintenance-free, compatible with all materials.
- Flexible Cable System – Shielded high-flex cables rated for 8M+ cycles, resistant to damage.
Product Gallery
Technical Parameters
| Warranty |
1year |
|---|---|
| Height of Material |
190mm |
| Working table |
2×2.2 KW Vacuum Table |
| Work Area |
1300*2500mm ,2000*4000mm ,3000*1500mm |
| Duplicate targeting |
±0.025mm |
| Power |
Single Phase ,AC220V±10% ,50HZ |
| Spindle power |
3.2KW water-cooled spindle |
| Operating mode |
Shenzhen Lesai High-Speed Drive |
| Transmission mode |
Ground racks and square guides |
| Control system |

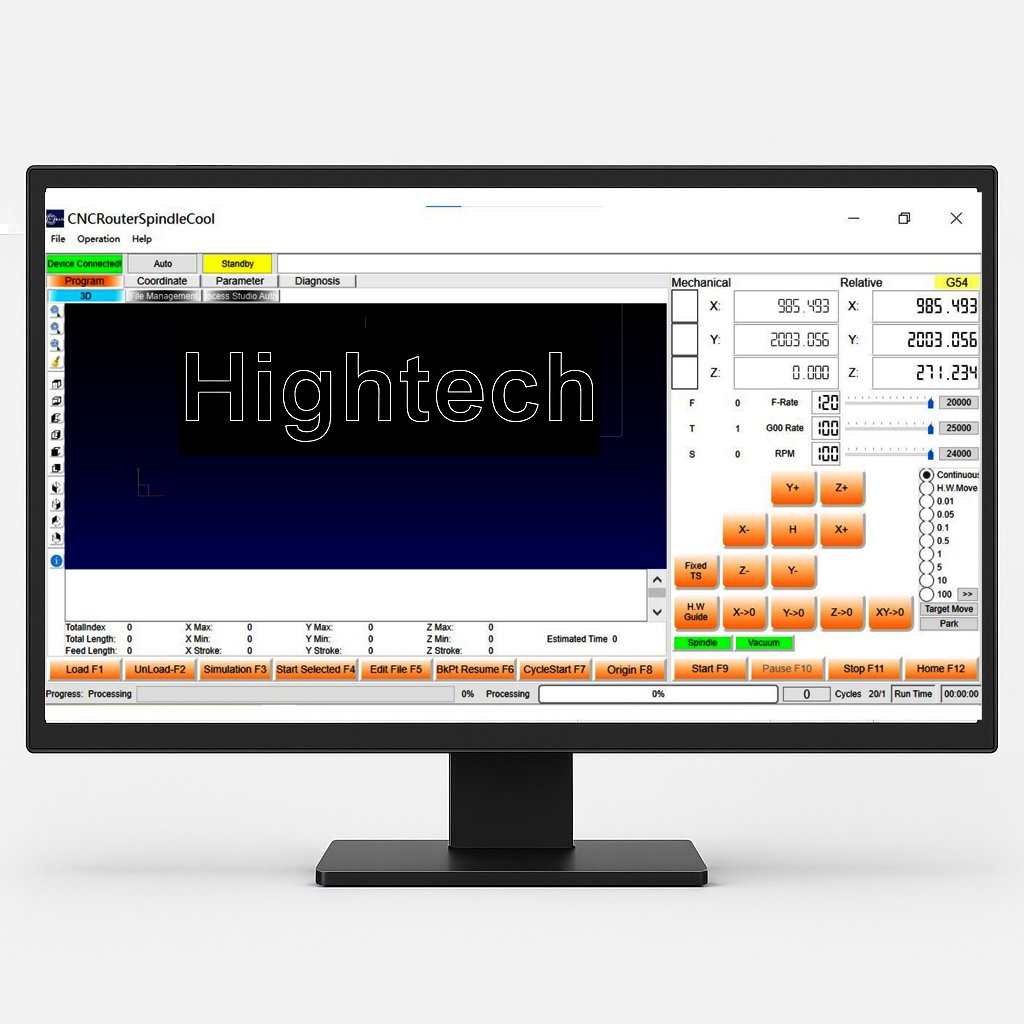

MDR CNC control system |
| Software operating environment and instructions |
G-code/HP.GL ,Win10 system 64-bit |
| Applicable Material |
Acrylic ,MDF ,Plastic ,Plywood ,PVC ,Sign Board ,Wood |
| Tool shank diameter |
φ12.7 ,φ3.175 ,φ4 ,φ6 |
| Shock Absorption Method |
Earth-center shock-absorbing feet |
| Components |
French Schneider and Chint |
| Consumable parts |
knife holders ,Knives ,protective cloth |
Introducing HT R3 Q CNC Router Engraving Machine
The HT R3 Q CNC Router is a high-precision engraving machine designed for acrylic, PVC, wood, MDF, polycarbonate, and ACP sheets. With a robust design and advanced mechanical transmission system, this machine guarantees high-speed, accurate engraving and cutting for signage, furniture production, and industrial applications. Built for reliability and performance, the HT R3 Q is an excellent choice for businesses looking for consistent, high-quality results in a wide range of materials.Technical Specifications:- Model Options: HT-R3 Q-1325 / HT-R3 Q-1530
- Spindle Power: 3.2 kW water-cooled spindle
- Control System: DSP controller
- Drive System: LEADSHINE high-speed drive system
- Table Type: T-slot aluminum alloy vacuum table
- Cooling System: Water-cooled spindle for consistent performance
- Voltage: Single-phase 220V / 50Hz
Key Features
- Robust Structure Industrial-grade welded steel frame ensures long-lasting stability and vibration-free operation.
- High-Torque Spindle 3.2 kW water-cooled spindle provides high-speed cutting with excellent precision.

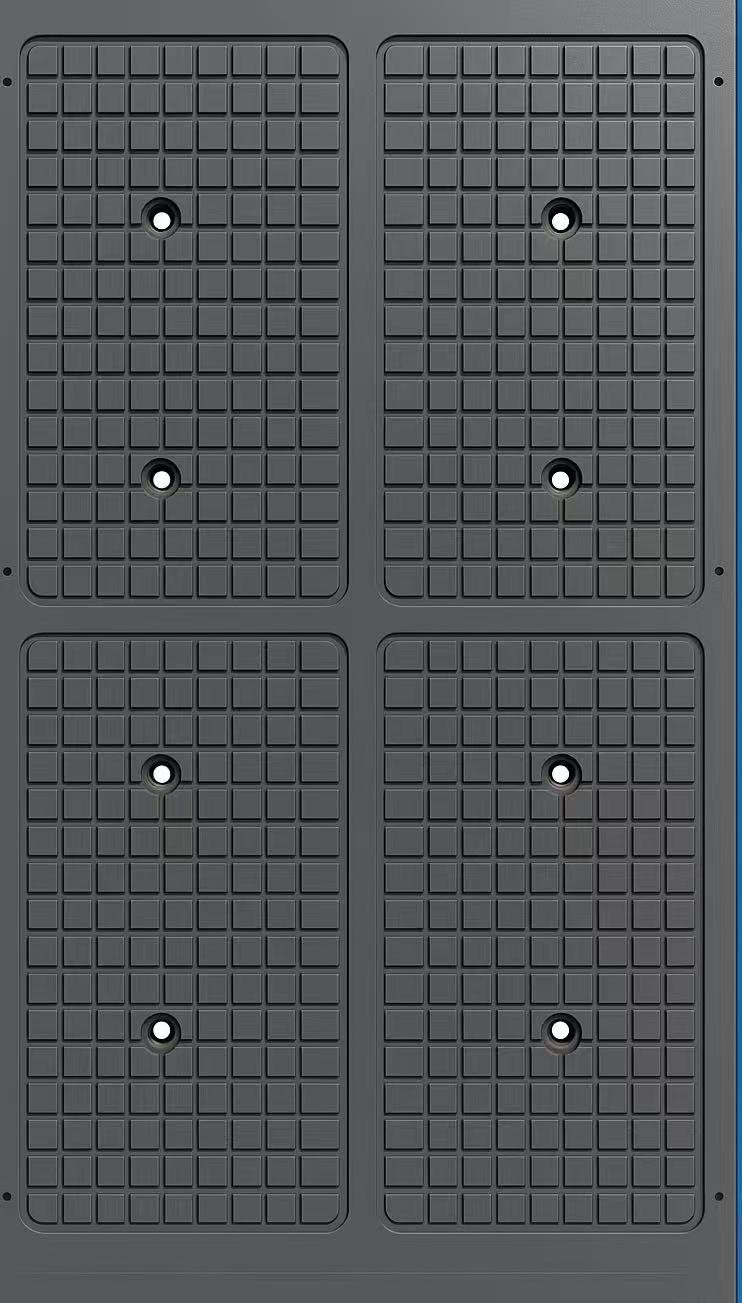

- Vacuum Adsorption Table Negative pressure fixation holds materials securely without the need for clamps, reducing interference.
- Precision Transmission XY axis linear guides and TBI ball screws provide smooth, precise movement for accurate machining.
Why Choose HT R3 Q
- Enhanced Accuracy Precision mechanics and a high-torque spindle ensure high-quality, consistent results.
- Long-Lasting Durability Built with a sturdy frame and durable components to handle high-speed, heavy-duty applications.

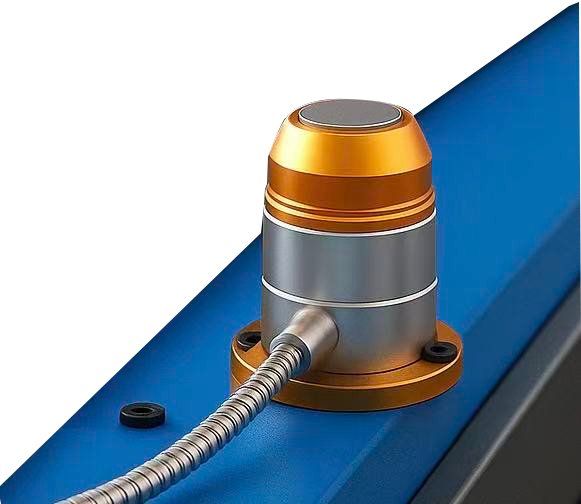

- Efficient Operation Automatic tool setting and vacuum adsorption improve workflow and reduce downtime.
- Advanced Electronics Reliable electronics and a frequency conversion system ensure smooth, interference-free performance.
Applications
- Signage & Letters Ideal for creating illuminated signs, lettering, and other detailed engravings on acrylic, PVC, and polycarbonate.
- Wood & MDF Processing Perfect for furniture carving, panel cutting, and woodworking applications with high precision.
- Industrial Panels & Prototyping Suitable for ACP, polycarbonate, and other industrial materials in fabrication and prototyping processes.
