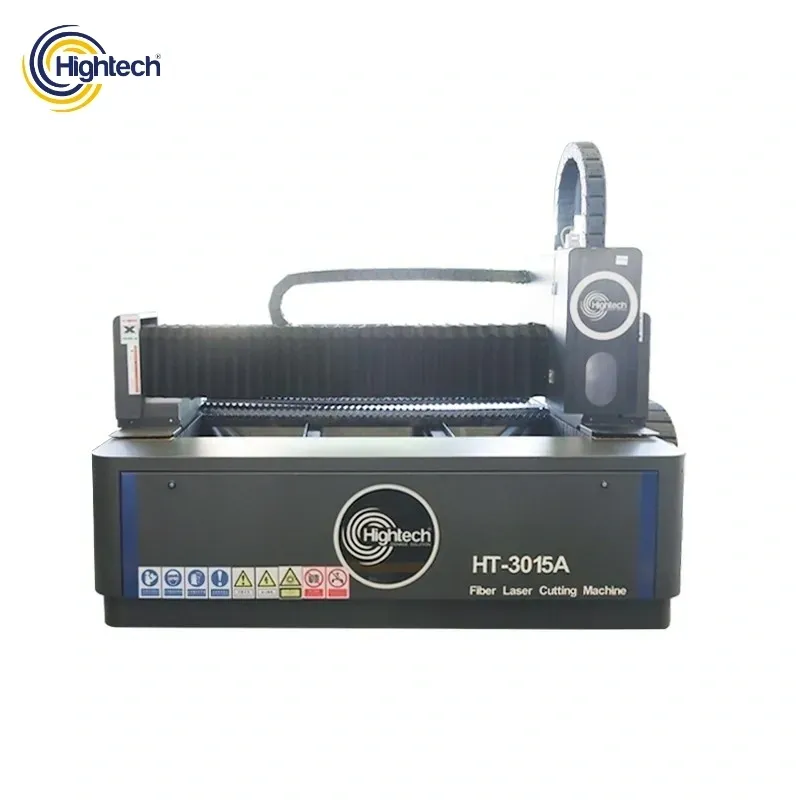

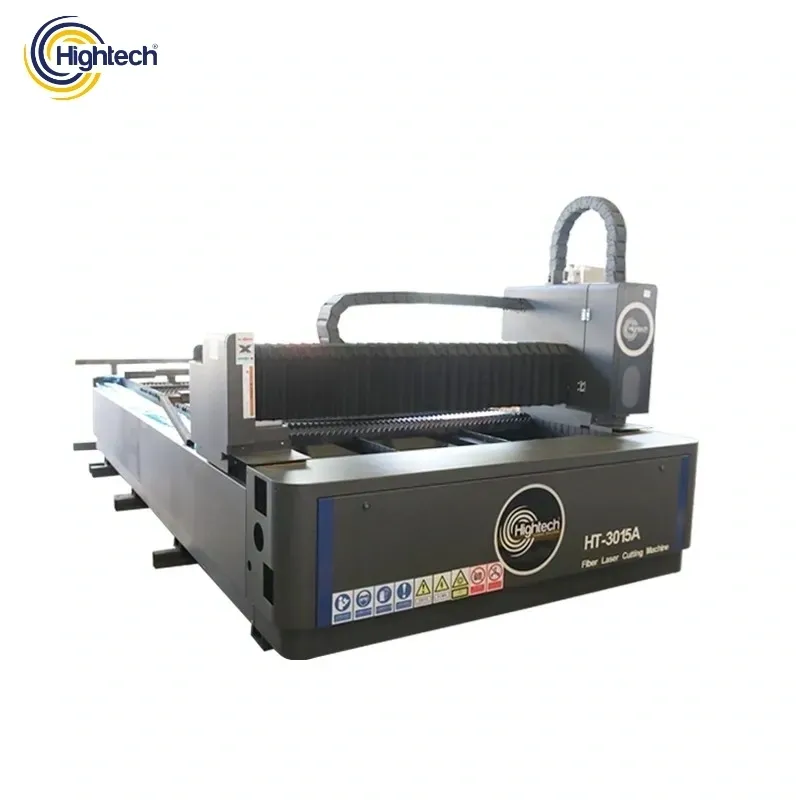

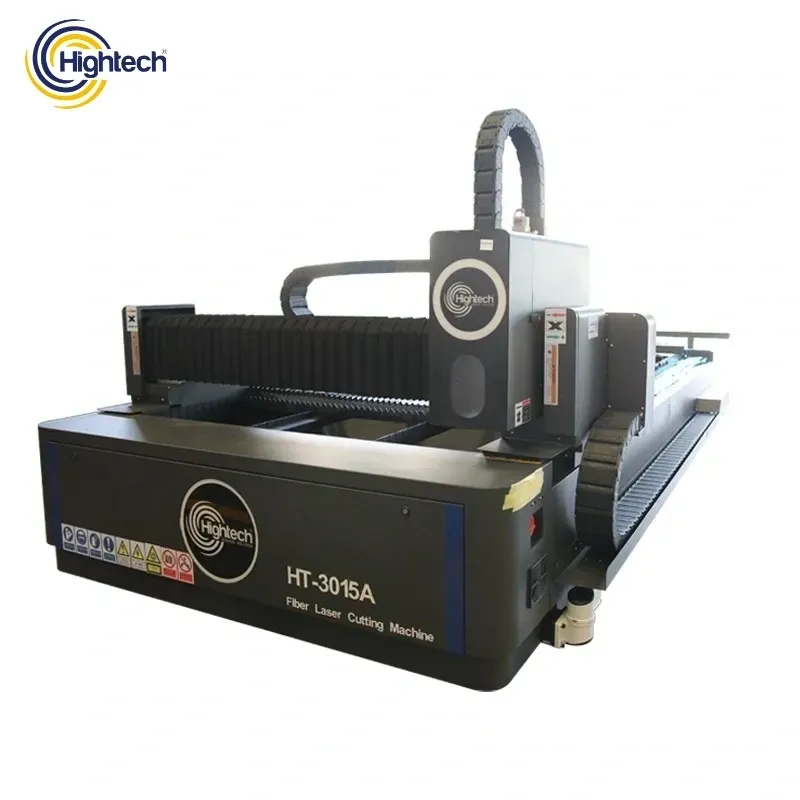

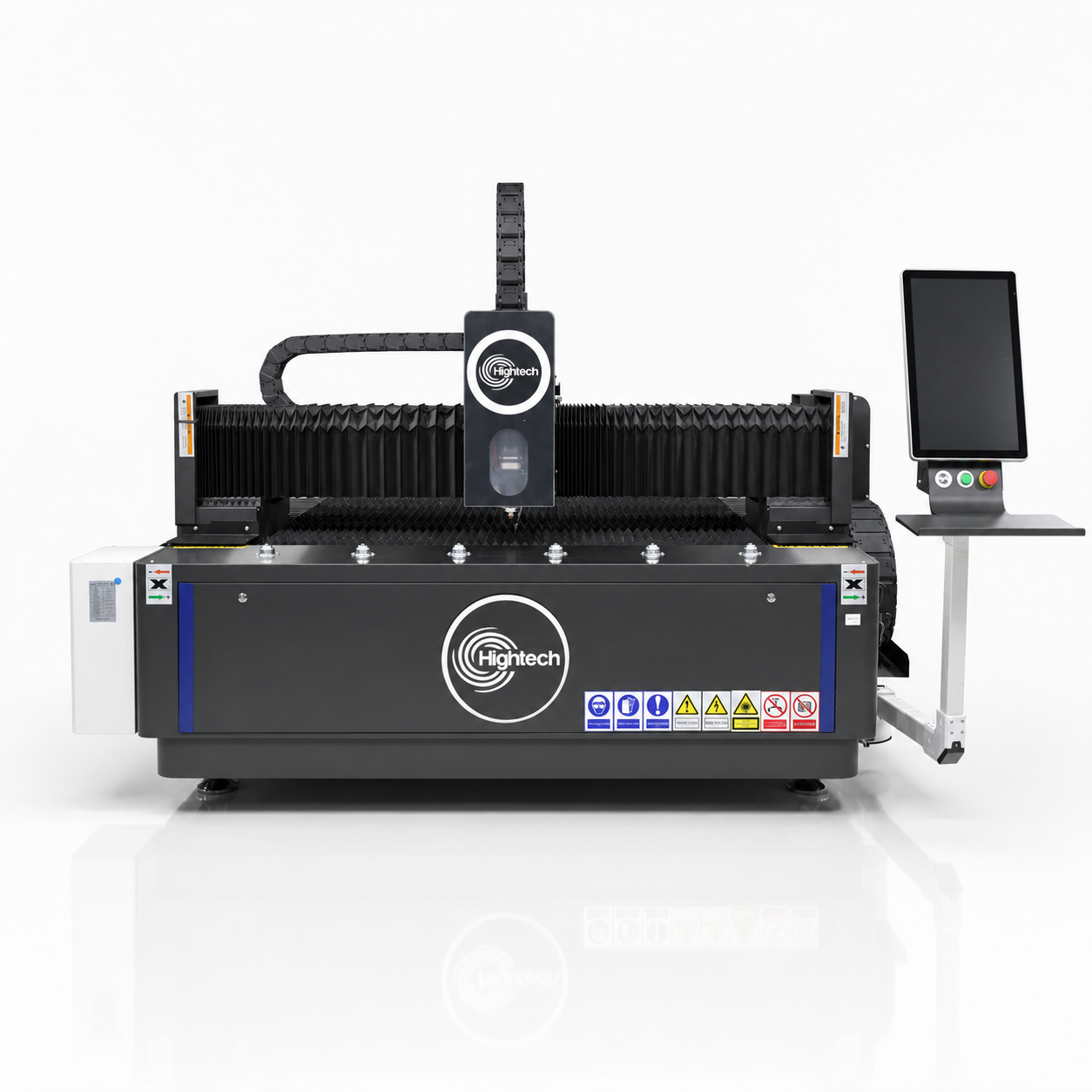

HT FC-1530 Fiber Laser Cutting Machine
- High-quality fiber laser source and head for exceptional beam quality and power stability, with maintenance-free operation
- Runs on air, oxygen, or nitrogen, providing flexible cutting options for different materials
- Industrial-strength construction with three-axis dust-proof design, XY-axis rack drive, and Z-axis screw drive

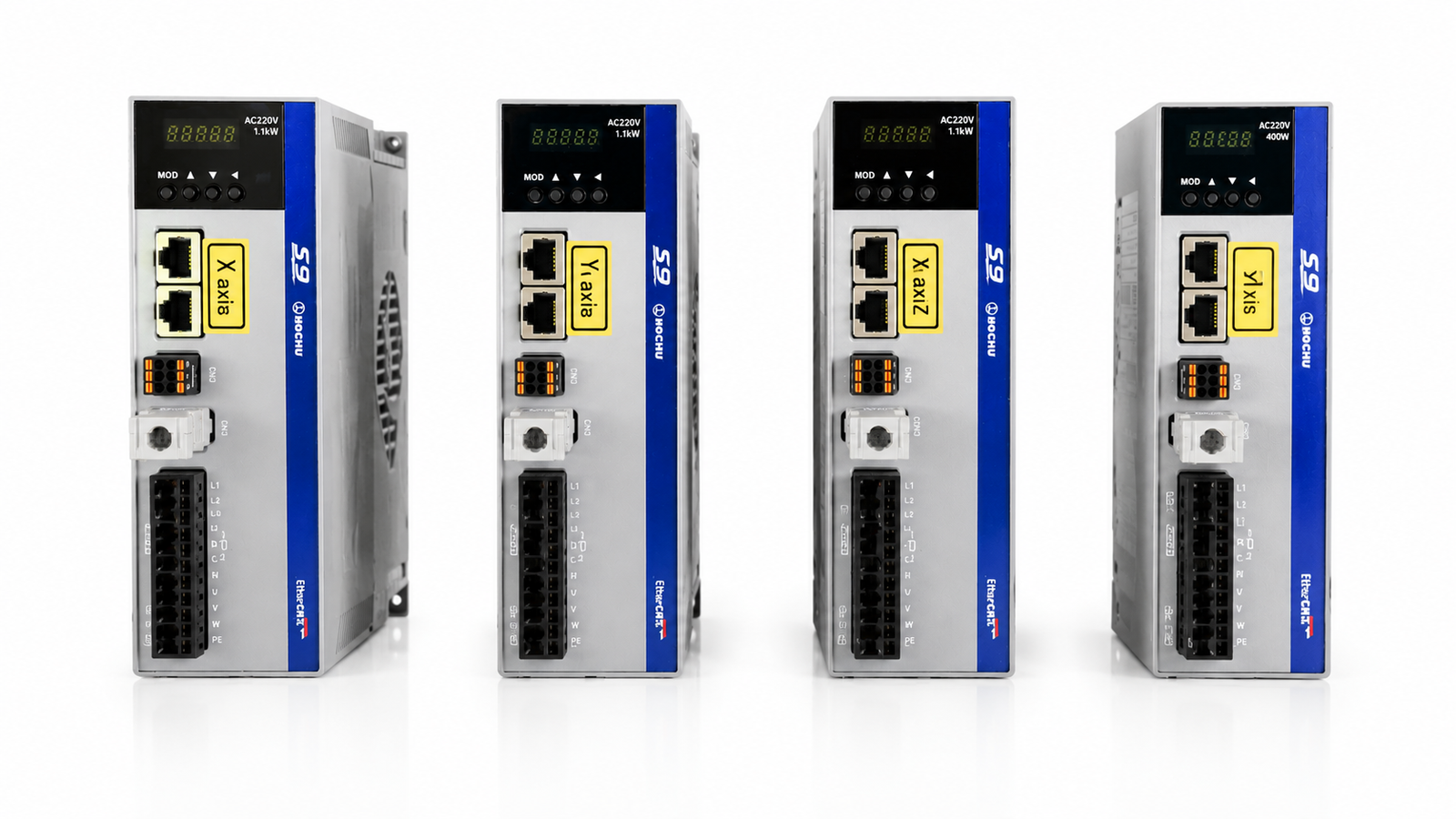

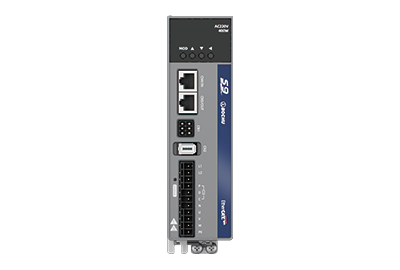

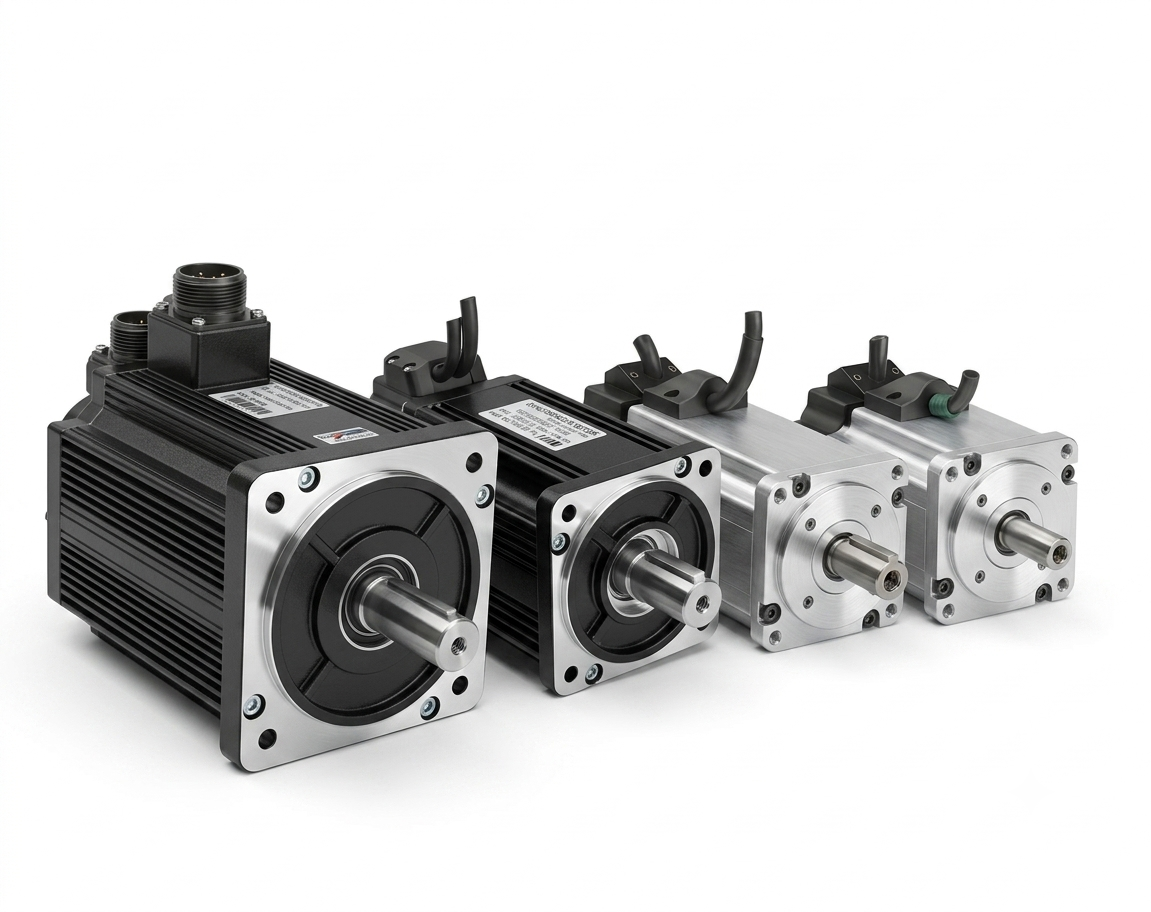

- Precision servo system with high-stability electronic components for accurate and reliable performance

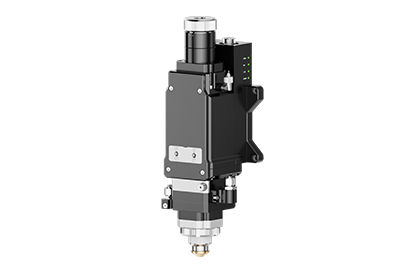

- Auto-focus laser head with capacitive height control for automatic adjustment to plate variations
Product Gallery
Technical Parameters
| Warranty |
1year |
|---|---|
| Weight |
1200Kg |
| Power |
Single Phase ,AC220V±10% ,50HZ |
| Outlinesize |
3900.5*2760*1650mm |
| X-axis Travel |
1500mm |
| Z-axis Travel |
80mm |
| Work Area |
3000*1500mm |
| Protection Level of Total Powersupply |
IP54 |
| Maximum acceleration |
0.4G |
| Repeated positioning |
±0.02mm |
| Applicable Material |
Aluminum alloy ,Brass ,Carbon Steel ,Copper ,Electrolytic Sheet ,Galvanized sheet ,Manganese Alloy ,Silicon Steel ,Stainless Steel ,Titanium Alloy |
| Table maximum load |
700Kg |
| Positioning Accuracy |
±0.05mm |
| Processing Speed |
60m/min |
Introducing HT FC-1530 Fiber Laser Cutting Machine
The HT FC-1530 Fiber Laser Cutting Machine is a precision fiber laser system engineered for high-speed, reliable cutting of a wide range of metal sheets. Featuring fully automatic focusing, intelligent tracking, and free nesting capabilities, it is ideal for industrial fabrication, metalworking, and signage production. Its robust construction and advanced control systems ensure consistent performance across diverse materials including carbon steel, stainless steel, aluminum, and more.Key Highlights
- Automatic Focusing & Tracking: Maintains precision across varying material thicknesses.
- Versatile Material Cutting: Supports carbon steel, stainless steel, aluminum, brass, copper, and titanium alloys.
- Industrial-Grade Construction: High-strength annealed bed with aviation-grade aluminum beam for stability.

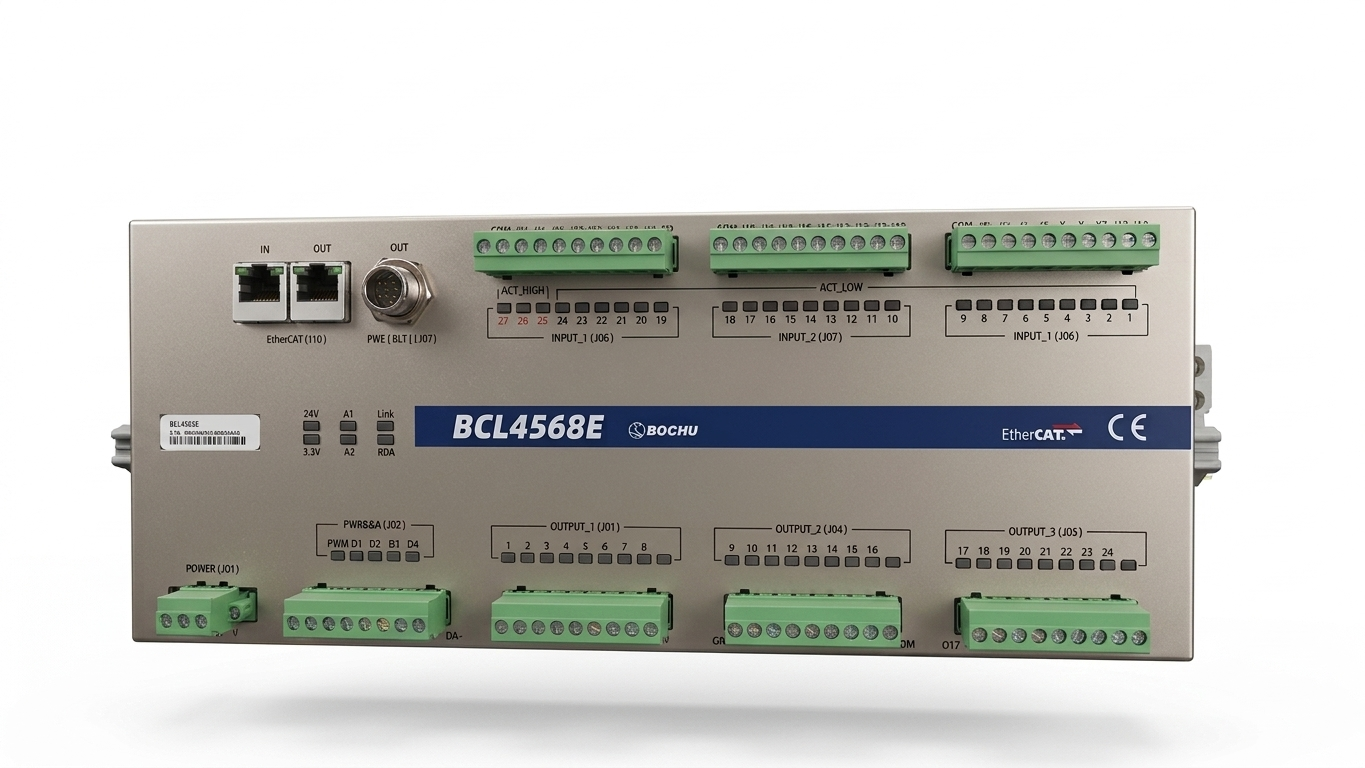

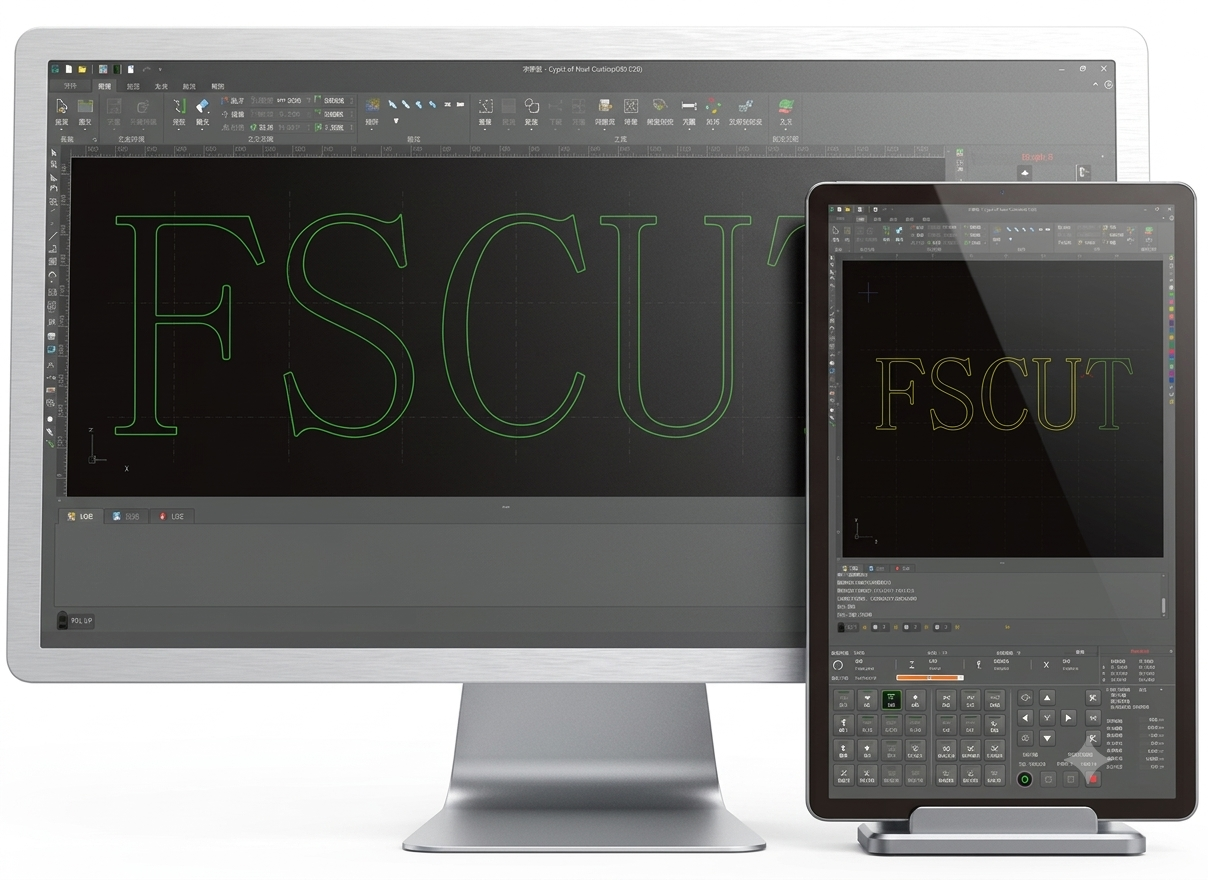

- Advanced Control System: FSCUT system enables smooth motion, precise power monitoring, and efficient operation.
Key Features
- Precision Transmission: YYC guide rails and helical rack drive provide accurate, smooth movement while reducing driving torque.
- Durable Machine Bed: 600°C high-temperature annealed bed ensures rigidity, vibration resistance, and long-term stability.

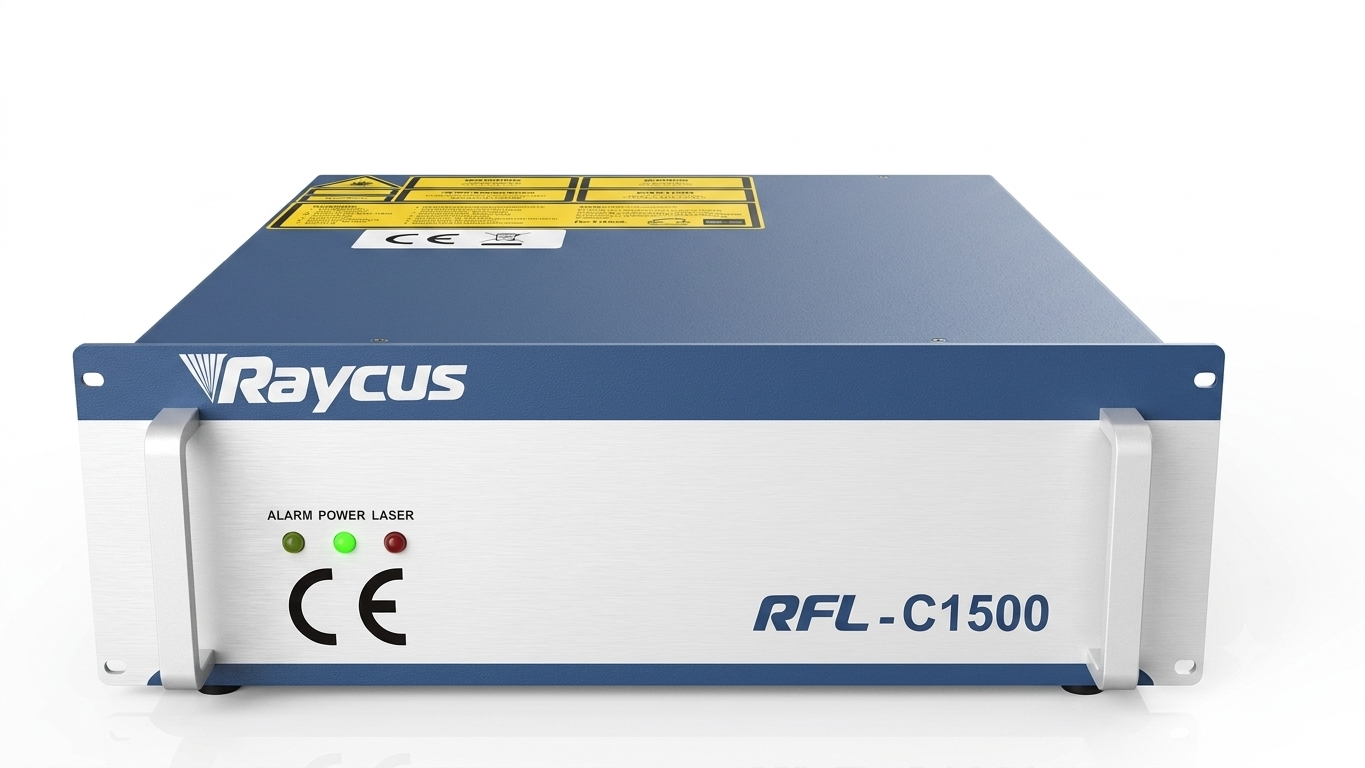

- Laser Components: Raycus laser source with Raytools cutting head delivers stable beam quality, fast cutting speeds, and minimal maintenance.

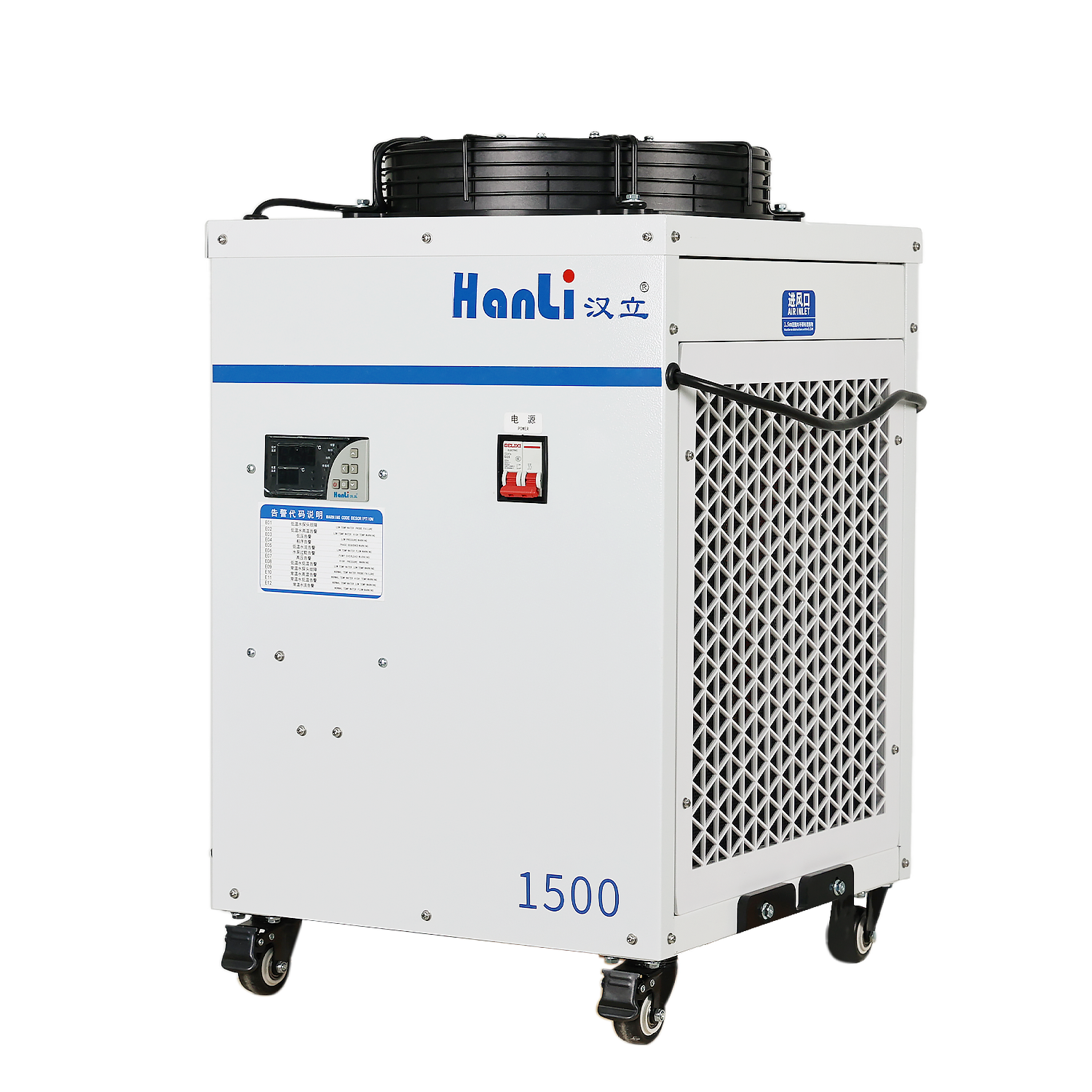

- Cooling System: Hanli water chiller maintains laser performance, ensures reliable heat exchange, and protects components during continuous operation.
Why Choose HT FC-1530
- High Cutting Accuracy: Automatic focusing and intelligent tracking provide clean, precise edges on complex metal designs.
- Robust & Reliable: Strong structural frame and reinforced aluminum beams reduce vibration and maintain alignment under heavy workloads.
- Optimized Workflow: Free nesting and intelligent tracking reduce material waste and improve cutting efficiency.
- User-Friendly Operation: FSCUT control system offers simple parameter adjustments and monitoring, enabling safe and efficient operation.
Applications
- Sheet Metal Fabrication: Cuts carbon steel, stainless steel, aluminum, galvanized sheets, and other alloys with precision.
- Industrial Manufacturing: Ideal for machinery components, refrigeration equipment, and mechanical processing.
- Construction & Elevators: Used for precision-cut metal panels and structural components.
- Advertising & Signage: Accurate cutting for metal letters, decorative panels, and industrial signage.
