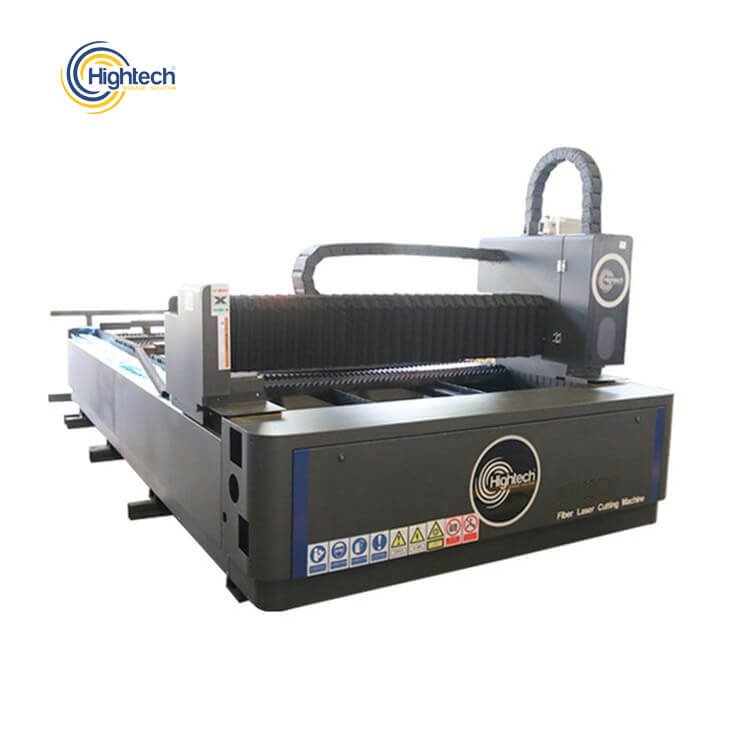

HT FC-1325 Fiber Laser Cutting Machine
- High-quality fiber laser source and head for exceptional beam quality and power stability, with maintenance-free operation
- Runs on air, oxygen, or nitrogen, providing flexible cutting options for different materials
- Industrial-strength construction with three-axis dust-proof design, XY-axis rack drive, and Z-axis screw drive
- Precision servo system with high-stability electronic components for accurate and reliable performance
- Auto-focus laser head with capacitive height control for automatic adjustment to plate variations
Product Gallery
Technical Parameters
| Warranty |
1year |
|---|---|
| Weight |
1200Kg |
| Power |
Single Phase ,AC220V±10% ,50HZ |
| Outlinesize |
3900.5*2760*1650mm |
| X-axis Travel |
1300mm ,1500mm |
| Z-axis Travel |
80mm |
| Work Area |
1300*2500mm |
| Protection Level of Total Powersupply |
IP54 |
| Maximum acceleration |
0.4G |
| Repeated positioning |
±0.02mm |
| Applicable Material |
Aluminum alloy ,Brass ,Carbon Steel ,Copper ,Electrolytic Sheet ,Galvanized sheet ,Manganese Alloy ,Silicon Steel ,Stainless Steel ,Titanium Alloy |
| Table maximum load |
700Kg |
| Positioning Accuracy |
±0.05mm |
| Cutting Speed |
60m/min |
Introducing HT FC-1325 Fiber Laser Cutting Machine
The HT FC-1325 Fiber Laser Cutting Machine is a high-precision industrial system designed for efficient metal sheet cutting. Equipped with a Raycus fiber laser source and Raytools cutting head, it delivers stable power, exceptional beam quality, and maintenance-free operation. Built on a rigid welded frame with advanced motion control, it ensures reliable, accurate, and consistent cutting across a wide range of metals.Key Highlights
- High-Power Fiber Laser: Raycus source delivers precise, stable cutting with long service life.
- Auto-Focus Laser Head: Raytools head ensures smooth operation on uneven metal plates.
- Heavy-Duty Construction: Rigid welded bed with aviation-grade aluminum beam ensures stability.
- Advanced Motion & Control: FSCUT system with precision servo motors provides accurate and smooth movement.
Key Features
- Industrial Performance: Supports air, oxygen, or nitrogen cutting—ideal for carbon steel, stainless steel, aluminium, and more.
- Precision Transmission: YYC guide rails and helical rack design ensure balanced movement, reduced vibration, and lasting accuracy.
- Stable Power & Efficiency: Up to 35% electro-optical conversion efficiency with real-time power monitoring for energy savings.
- User-Oriented Design: Dust-proof structure, easy loading platform, and intuitive control interface enhance usability and maintenance.
Why Choose HT FC-1325
- Superior Cutting Quality: High-stability laser output and advanced focusing technology guarantee smooth, burr-free metal edges.
- Reliable Productivity: Fast acceleration (up to 0.4G) and cutting speed (up to 60 m/min) maximise workflow efficiency.
- Built for Durability: Reinforced structure, premium components, and precision assembly ensure long-term industrial reliability.
- Smart Operation: Automated control and safety features allow easy setup and continuous, maintenance-free performance.
Applications
- Sheet Metal Fabrication: Precision cutting for stainless steel, carbon steel, and galvanised materials.
- Machinery & Equipment Manufacturing: Ideal for mechanical components, frames, and panels.
- Elevator & Refrigeration Industry: Used for metal enclosure fabrication, brackets, and inner structural parts.
- Advertising & Signage: Clean, accurate cutting for metal letters, decorative panels, and display structures.
