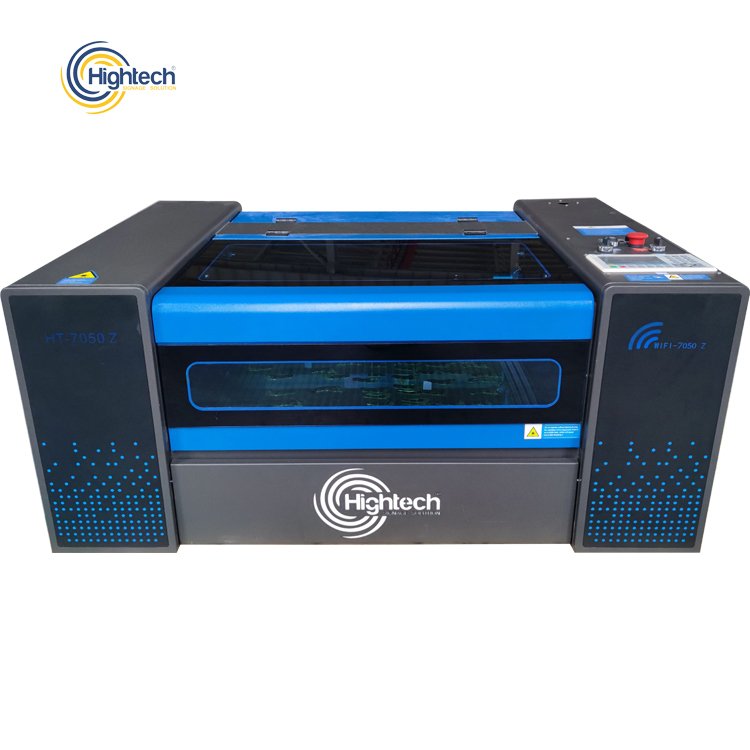

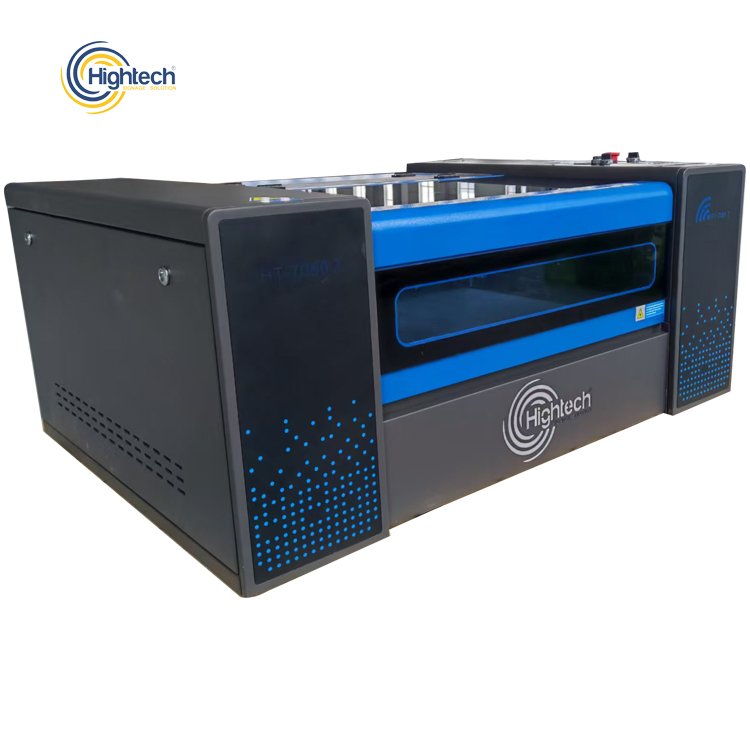

HT CO2-7050 Z Laser Cutting Machine
- Versatile material processing – Capable of cutting and engraving various non-metallic materials including acrylic, wood, leather, paper, cloth, double-color board, and density board. Can also engrave glass, stone, wine bottles, logs and other cylindrical objects (requires rotating shaft and lifting platform)
- Precision finishing capabilities – Features a heavy-duty CNC machining center designed for square pipe welding and finishing treatment to ensure high-quality results
- Adjustable noise operation – Includes built-in fan that can be switched on or off as needed to reduce operational noise
- Stable transmission system – Y-axis utilizes belt pressing technology to maintain balanced force distribution and minimize belt vibration for improved precision and durability
- Multi-functional engraving – Specialized capability for engraving cylindrical objects like wine bottles and logs when equipped with optional rotating shaft and lifting platform
Product Gallery
Technical Parameters
| Laser Power |
50W ,60W |
|---|---|
| Laser type |

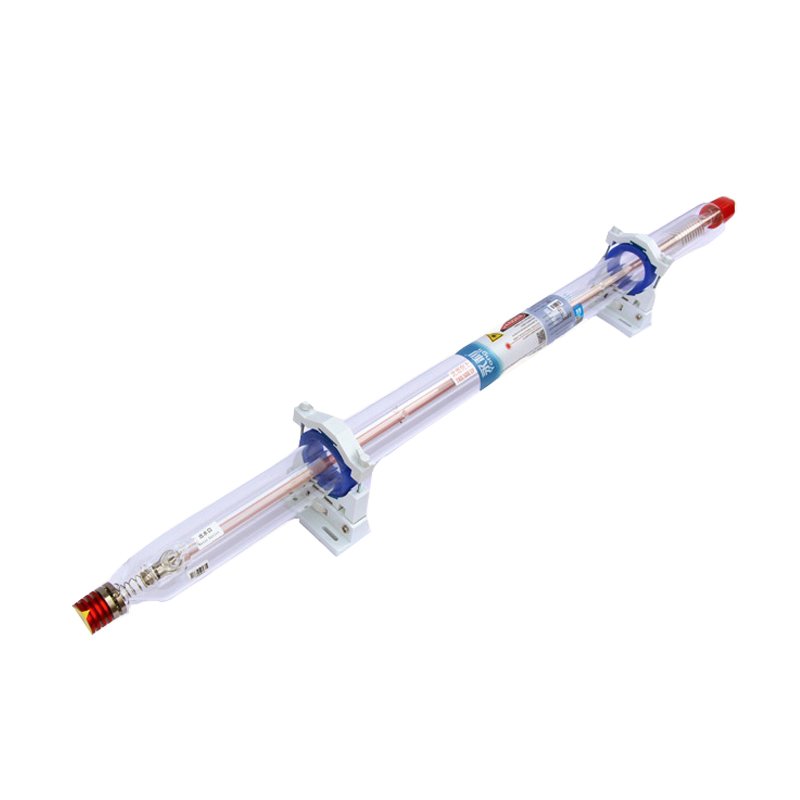

Sealed CO2 glass laser tube |
| Work Area |
700×500mm |
| Engraving Speed |
1000mm/s |
| Positioning Accuracy |
0.01mm |
| Processing platform |
Blade ,flat plate (optional) ,honeycomb |
| Software Operation Control System |
LaserCAD ,RDworks V8 |
| Lifting Height |
200mm |
| Power failure and continuation |
Yes |
| Data transmission |
Network port ,U disk ,USB |
| Memory |
128MB |
| Motion control system |

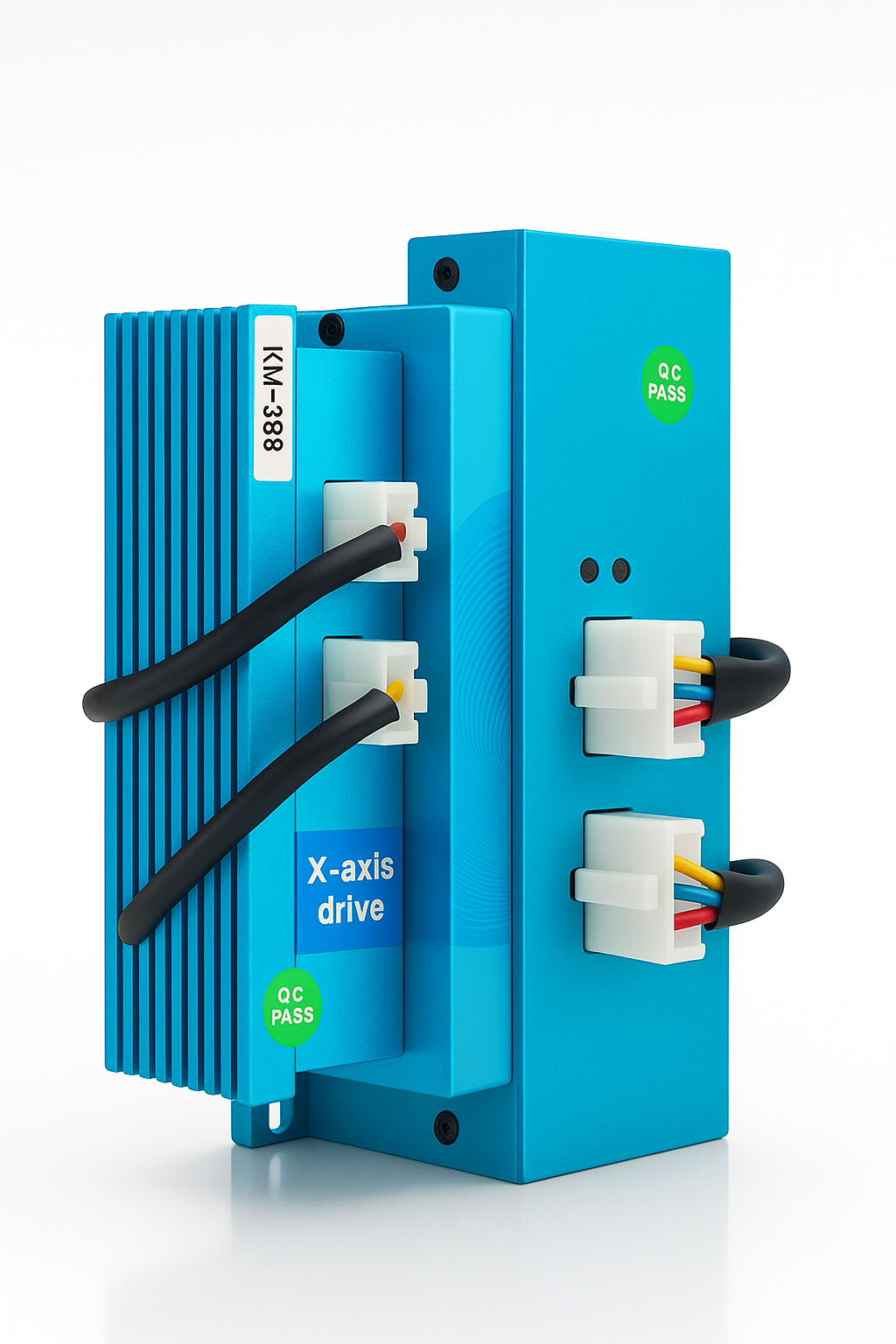

stepper drive (hybrid servo motor, hybrid servo drive optional) ,Stepper motor |
| Input File Format |
BMP ,DSP ,DWG ,DXF ,JPG ,PLT ,PNG |
| Processing Technology |
Cutting ,Engraving ,Line drawing ,Relief |
| Applicable Material |
Acrylic ,cardboard ,cloth ,Glass ,leather ,Marble ,other non-metallic materials ,Rubber ,Two-color board ,Wood |
| Minimum Engraving Size |
1mm*1mm |
| Supported drawing software |
AutoCAD ,CoreLDRAW ,Photoshop |
| Computer System |
Windows10/8/7 |
| Power |
(customizable according to the country) ,Two-phase ,AC220V±10% ,50HZ |
| Size |
1250-940-950 |
| Weight |
370KG |
| Equipment power consumption |
1600W |
| Cutting thickness |
Depending on the material |

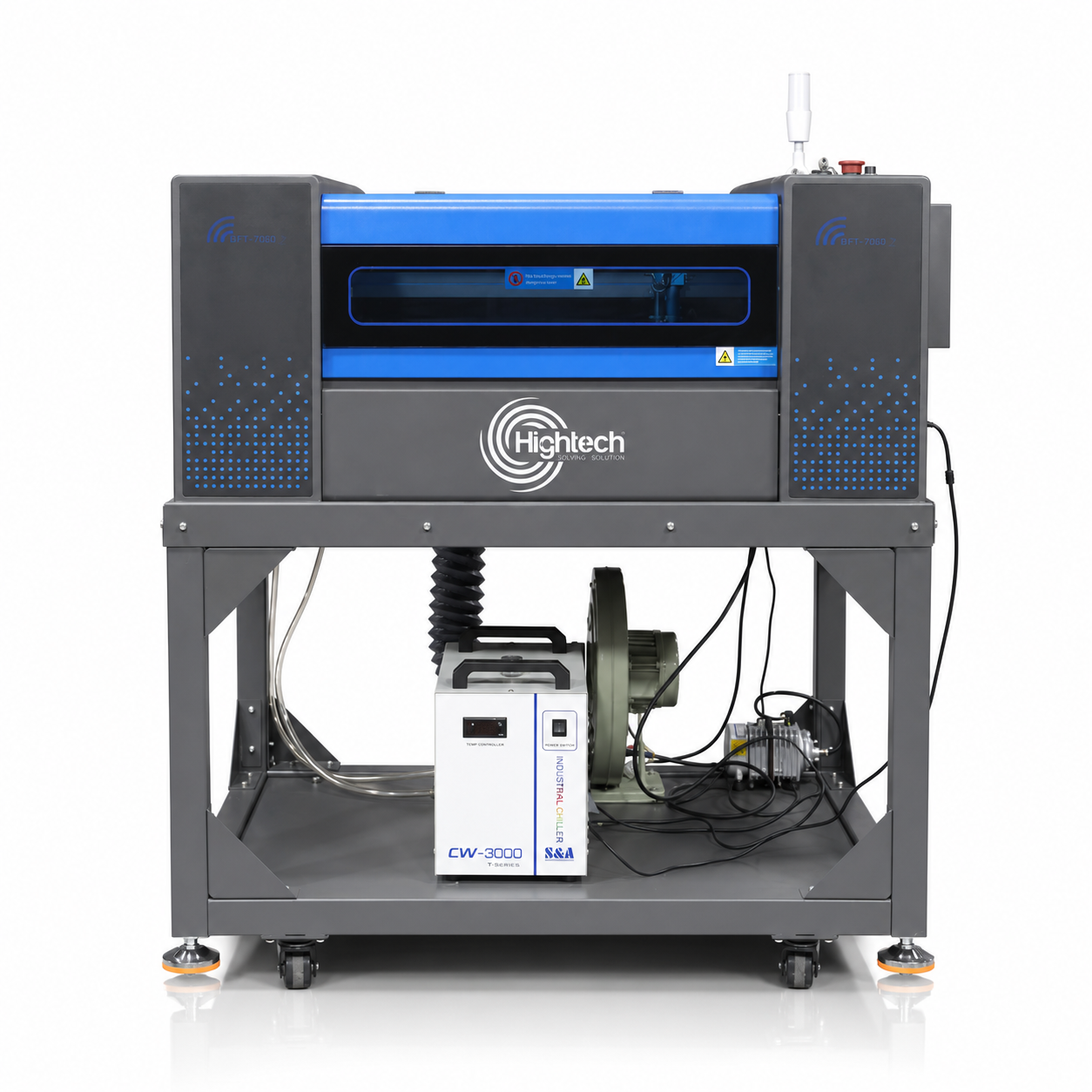

Introducing HT CO2-7050 Z Laser Cutting Machine
The HT CO2-7050 Z Laser Cutting Machine is an advanced laser system designed for medium to large-format engraving and cutting applications. Equipped with a liftable Z-axis platform, it provides superior flexibility for handling thicker materials and three-dimensional objects. Built with industrial-grade precision and stability, this model ensures high productivity, smooth operation, and excellent engraving depth control.Key Highlights:
- Liftable Z-Axis Platform: Adjustable height for processing thicker or irregular materials.
- Extended Working Area: Larger format ideal for signage, crafts, and industrial fabrication.
- Reinforced CNC Frame: Precision-machined structure guarantees alignment and minimal vibration.
- Optimized Air and Exhaust System: Ensures clean cutting surfaces and efficient fume extraction.
Key Features
- Adjustable Z-Axis Platform Provides up to several centimetres of lifting range, enabling accurate focus for variable material thicknesses and cylindrical objects.
- Precision Motion System Belt-driven Y-axis with equal-force pressing system ensures smooth, stable, and balanced movement during high-speed engraving.
- Industrial CNC Construction Square pipe welded frame processed by CNC machining offers superior rigidity and long-term accuracy.
- Efficient Cooling & Exhaust Integrated air assist and exhaust fan enhance cutting quality while keeping temperature and noise levels under control.
Why Choose HT CO2-7050 Z
- Greater Material Flexibility Handles a wide range of non-metals, from acrylic and wood to leather and coated boards, with accurate depth adjustment.
- Enhanced Engraving Depth Z-axis adjustment provides optimal laser focus, ensuring fine details even on uneven or thicker surfaces.
- Industrial Reliability CNC precision frame and motion system deliver consistent accuracy in long production cycles.
- Operator Convenience User-friendly control interface and adjustable noise fan make the operation smooth, quiet, and efficient.
Applications
- Signage & Acrylic Lettering Excellent for fabricating larger display panels, luminous letters, and precision-cut logo designs.
- Wood & Leather Crafting Ideal for deep engraving and pattern cutting on wood, leather, and decorative materials.
- Packaging & Personalization Perfect for engraving labels, boxes, and custom gift items with logos or artistic details.
