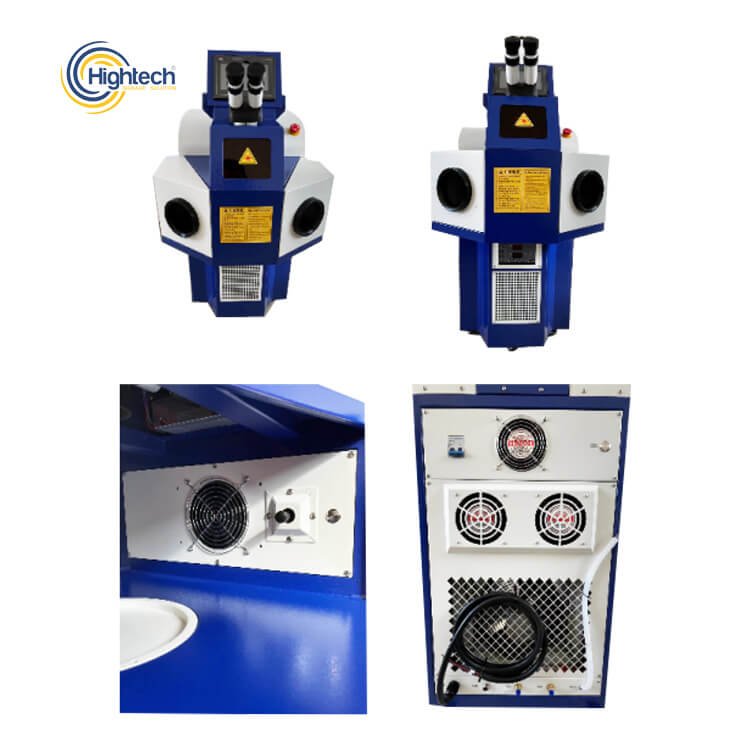

Cabinet Fiber Laser Jewellery Welding Machine HT JW CB 300
- Industry Pioneer – The original jewelry welding machine that set the design standard for subsequent models. Features powerful standard power supply and compressor-cooled water system for continuous operation, especially effective for high-purity precious metals.
- High-Speed Precision – Delivers fast, accurate welding while conserving energy. Eliminates surface damage and deformation common in traditional methods, preserving jewelry quality and appearance.
- Enhanced Visibility – Comes standard with 10X micro lens, with option to upgrade to microscope+CCD dual observation system.
- Eye Protection System – Automatic synchronized shutter blocks light during welding to prevent eye strain.
- Dual Control Options – Features both control panel and convenient joystick operation for parameter adjustments.
- Oxidation Protection – Integrated gas valve provides protective atmosphere during welding.
- Efficient Fume Extraction – Built-in ventilation quickly removes smoke for clearer visibility and environmental protection.
- Premium Components – Uses top-quality Dongjun crystal for stable power, imported ceramic cavity for high efficiency, and long-lasting domestic xenon lamps for cost-effective operation.
- Key Advantages: Combines proven reliability, superior performance, and user-friendly features for professional jewelry welding applications.

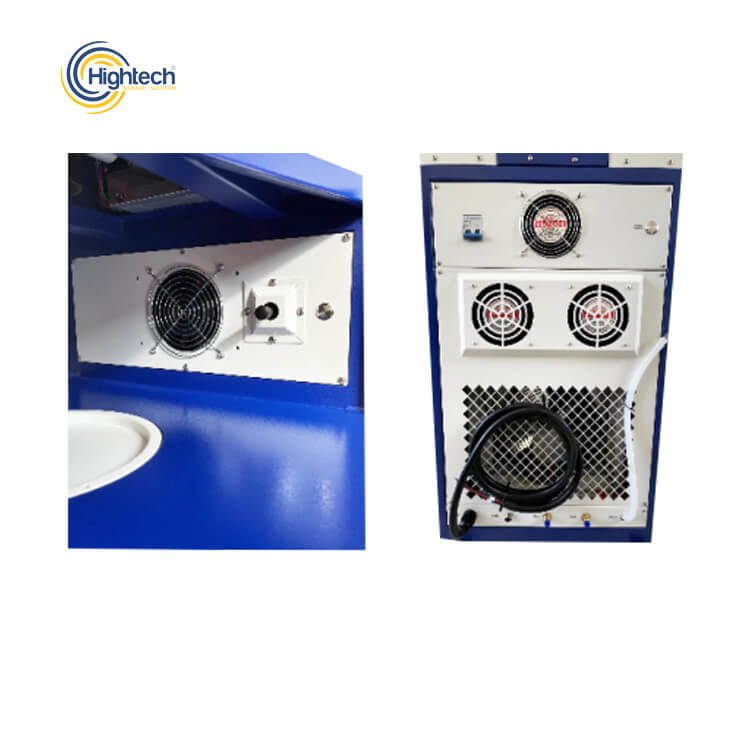

Product Gallery
Technical Parameters
| Laser Power |
300W |
|---|---|
| Laser type |
YAG |
| Laser wave length |
1064nm |
| Maximum energy per pulse |
85J |
| Pulse width |
0.1-3ms |
| Laser spot size adjusting range |
0.3-3mm |
| Laser welding frequency |
1-30Hz |
| Focal length |
110mm |
| Aiming and positioning |
10X microscope |
| Cooling Method |
Water-cooled compressor refrigeration |
| Power |
Peak 7.5kw ,AC220V±10% ,50HZ ,60Hz |
| Weight |
126Kg |
| Size |
1040*580*1280mm |
| Packaging size and weight |
1080*655*1350mm ,165kg |
